Multi-Angle Corner Connector - Gear Squad 21549A

GearSquad
Entry ID #: 7366
Created: Sat, Jan 11, 2020 10:13 AM

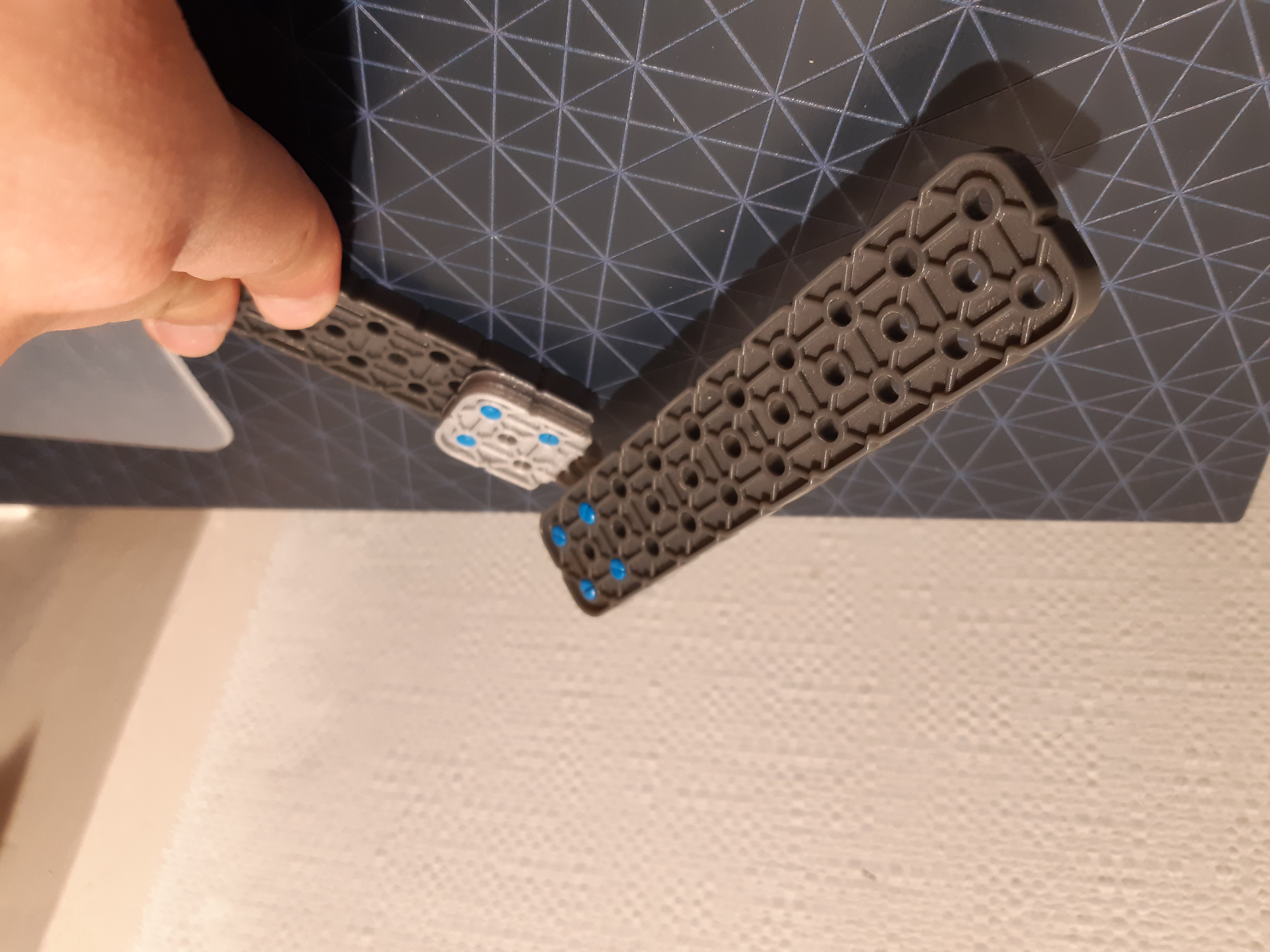

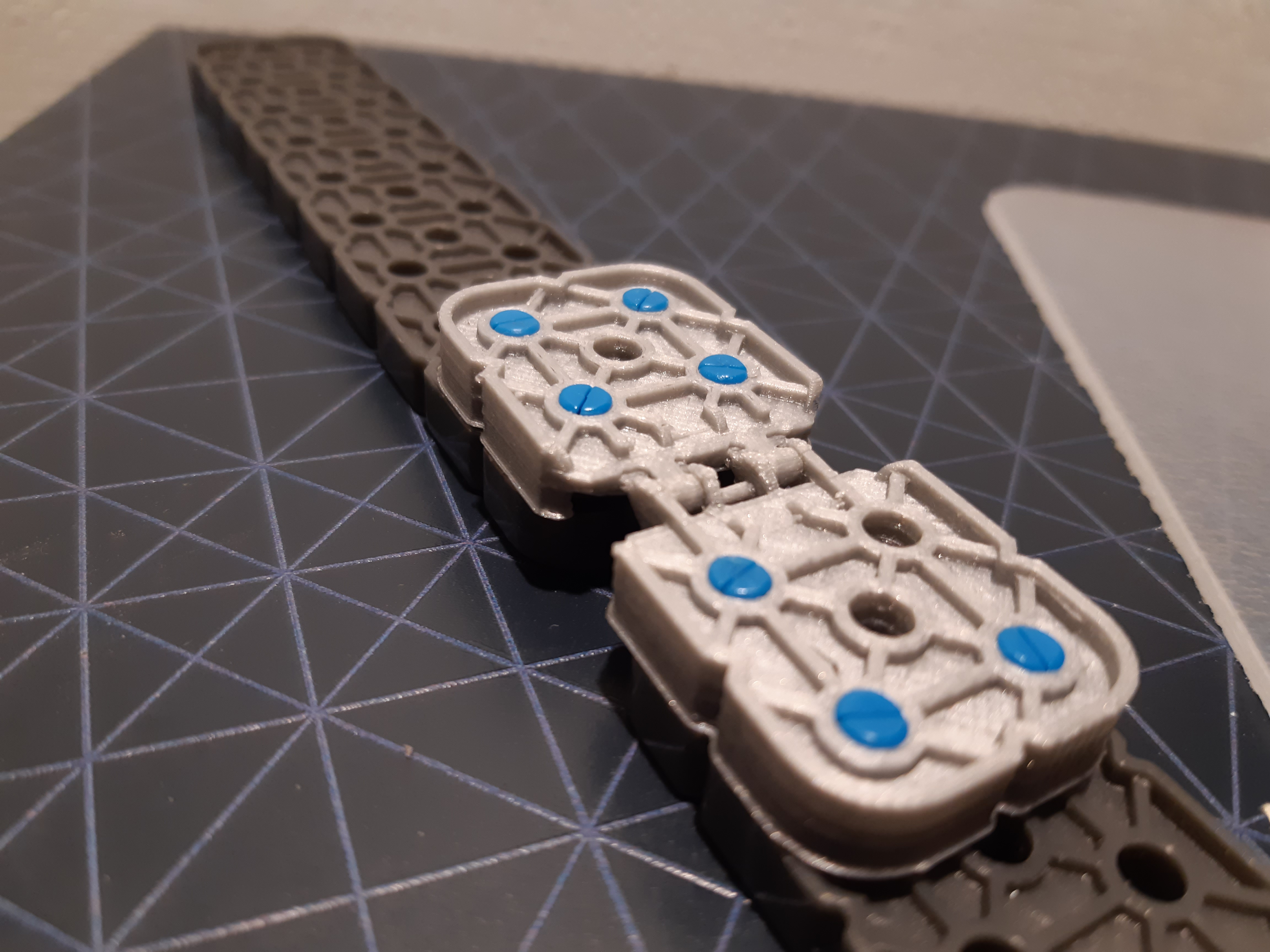

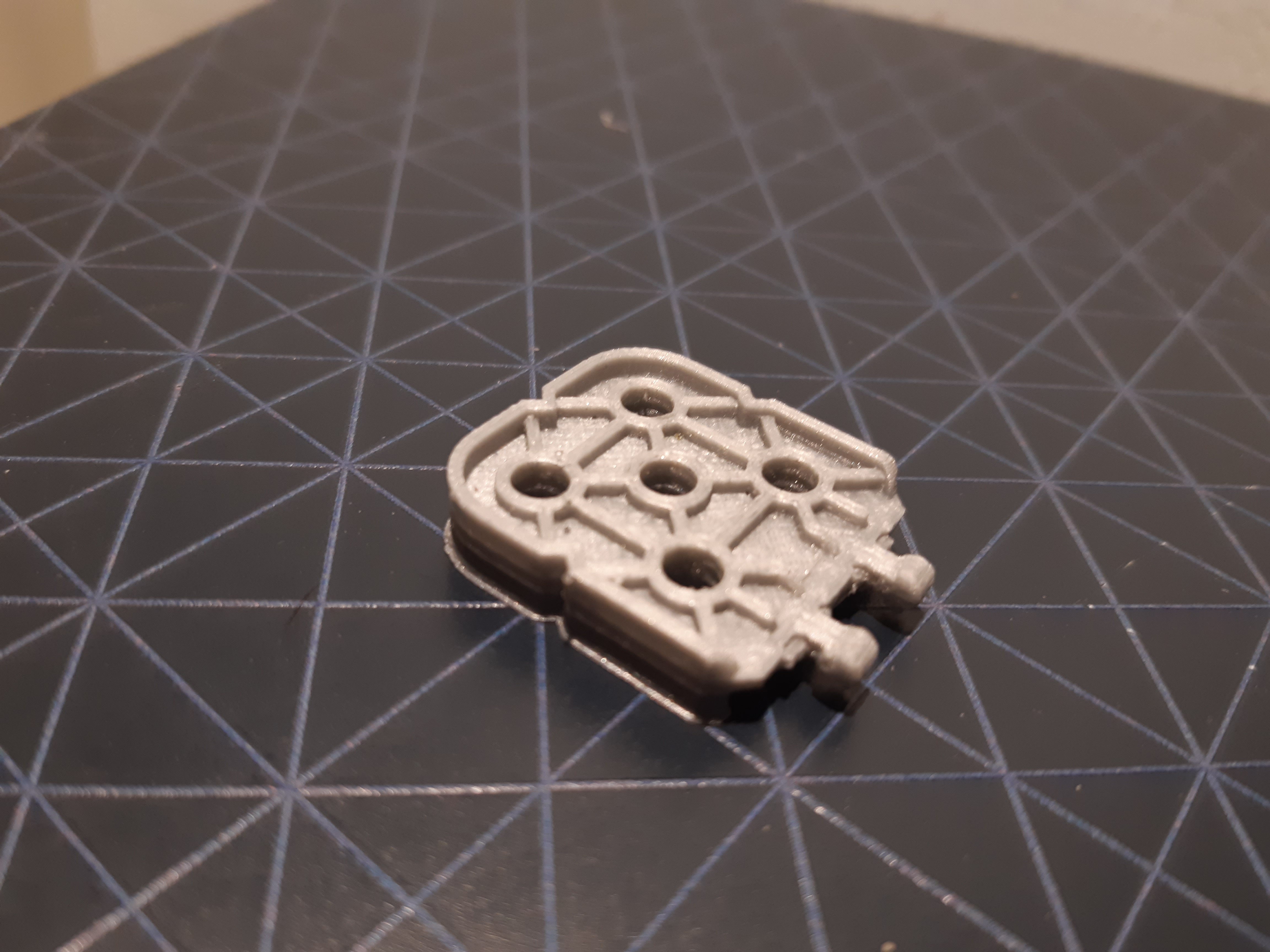

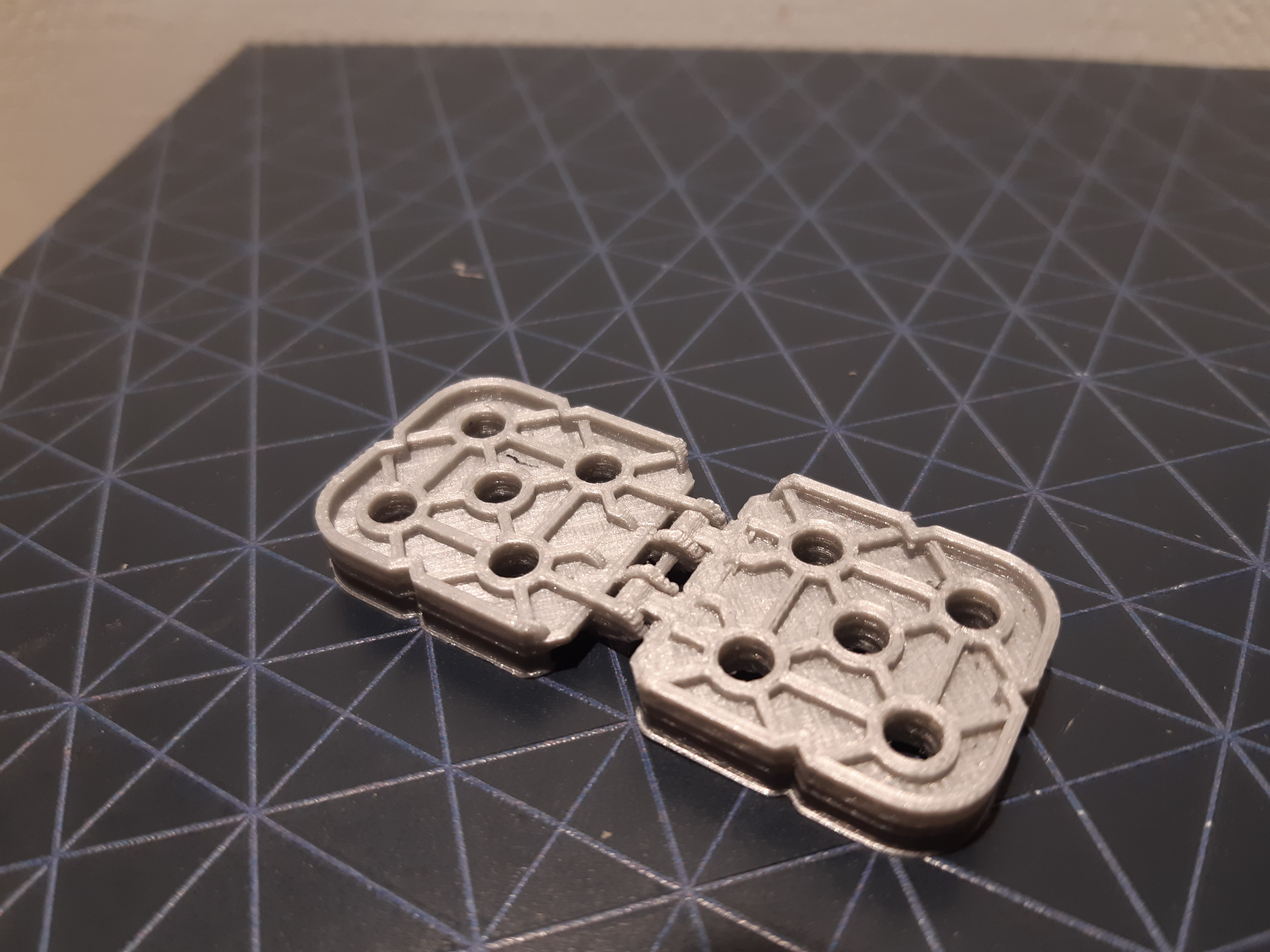

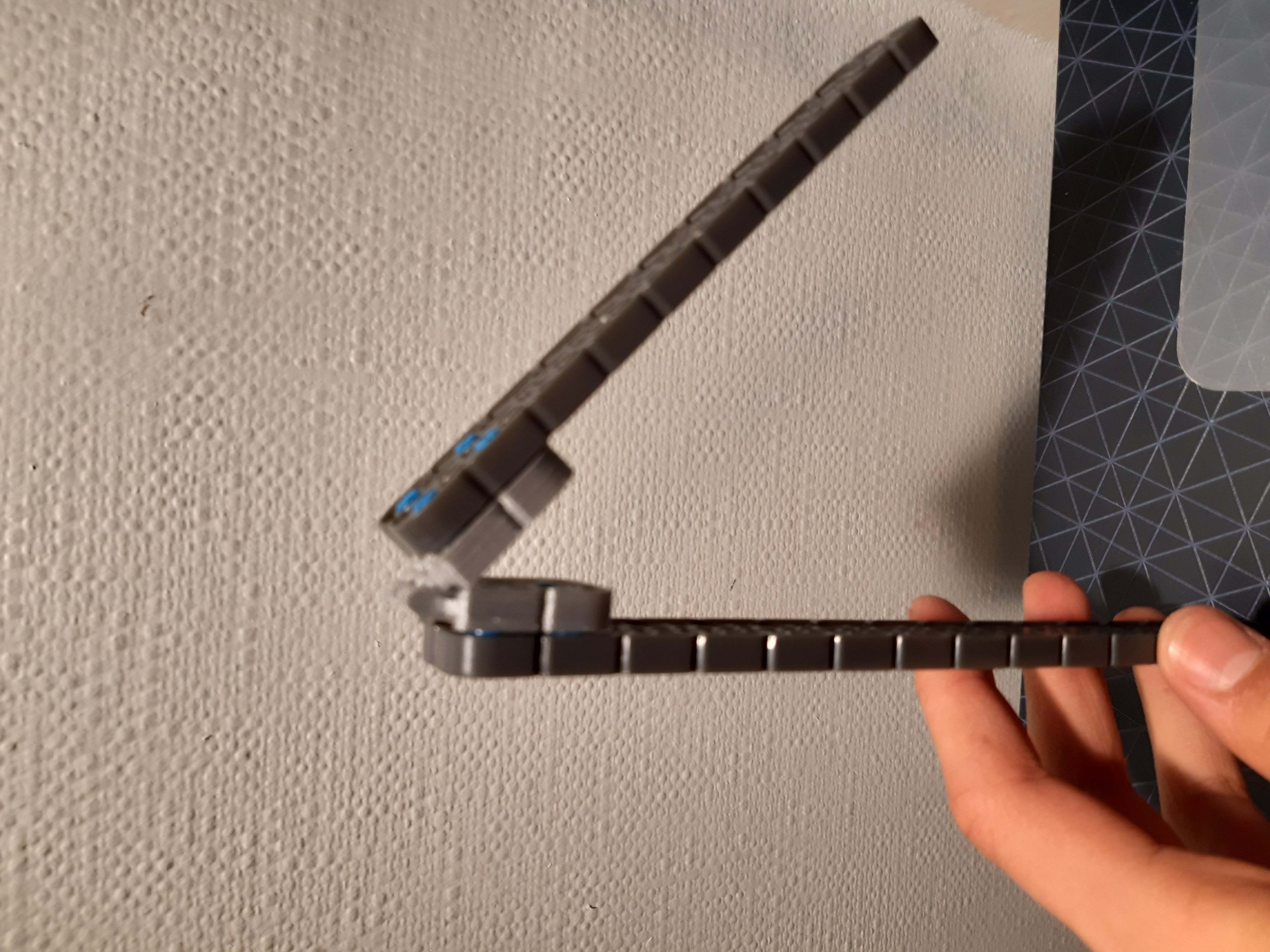

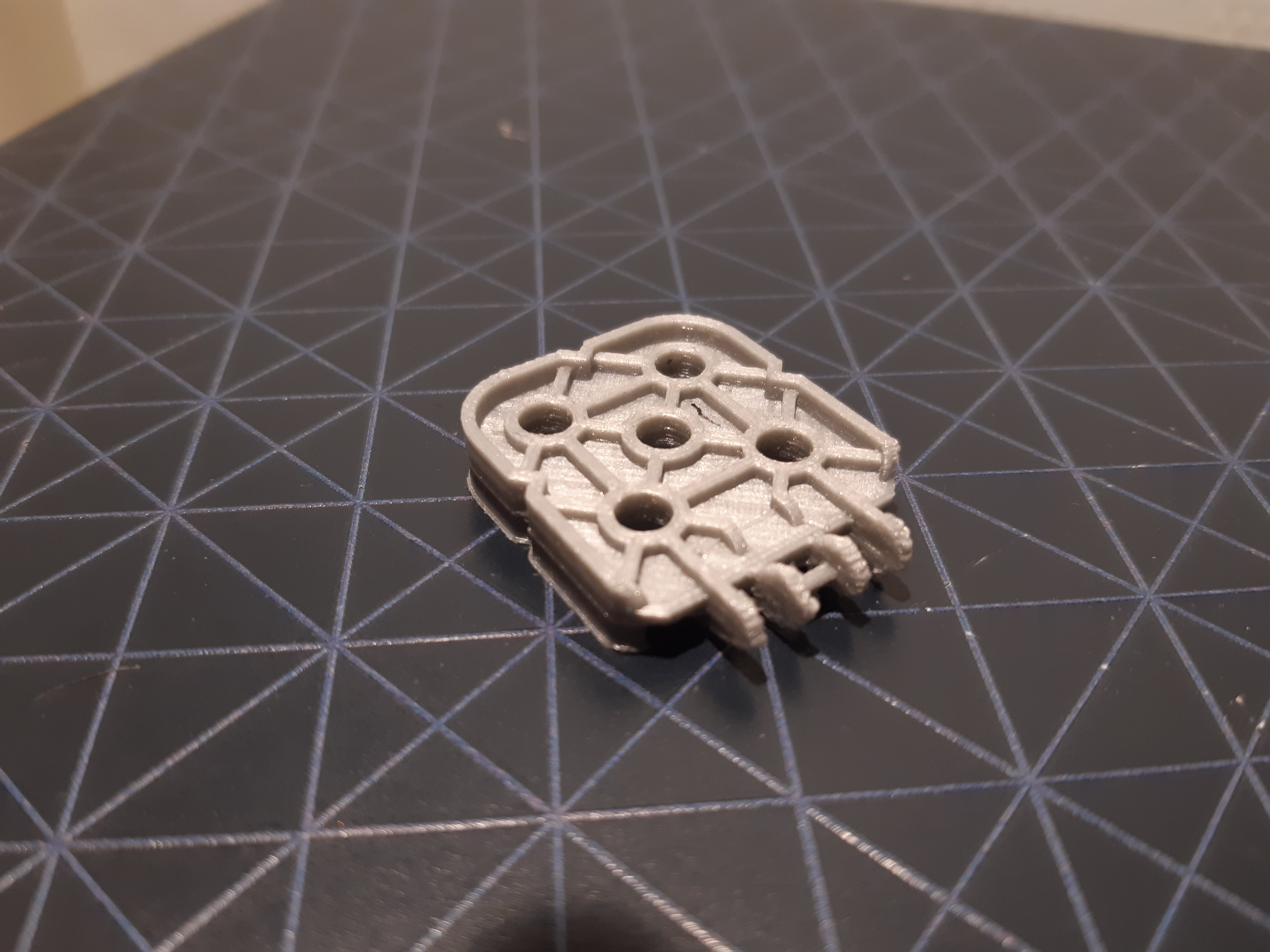

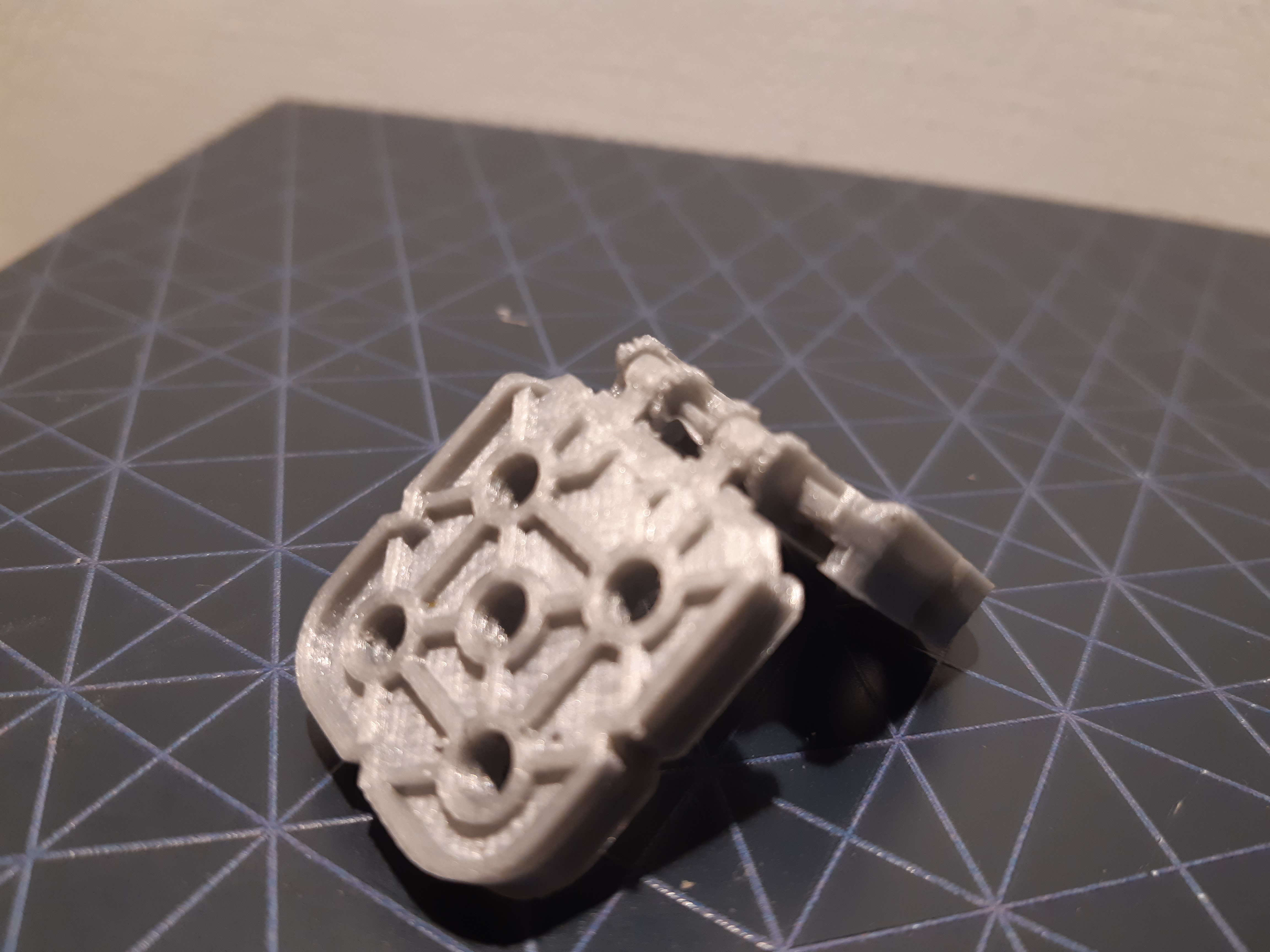

This is our entry for the 2020 Make It Real CAD Challenge. we have designed a 2 part piece, which moves at a hinge and can be used for connecting 2 beams together at different angles more info in the documents attached

Files

Multi-angle Corner connector (1) (pdf)

Links / Videos

There is nothing here.

Comments

taunja_weber@roboticseducation on 02/09/2020

Did not meet minimum requirements before deadline - DQ

GearSquad on 01/13/2020

Hi this is Gear Squad 21549a we forgot to include the CAD files! ;( pls use these links https://drive.google.com/file/d/1M8iFUA0mBpBlRar2XWfIBeHWZmAcdM_a/view?usp=sharing https://drive.google.com/file/d/1eiuuk2PfuPQRU4JUrhz8b0LrIcQnnnpC/view?usp=sharing https://drive.google.com/file/d/1MAK-vrGXiY1cFzp5oT8vduxJ-8o6iWRt/view?usp=sharing
