10

HurricaneRobotics
Entry ID #: 8815
Created: Mon, Dec 7, 2020 9:51 PM

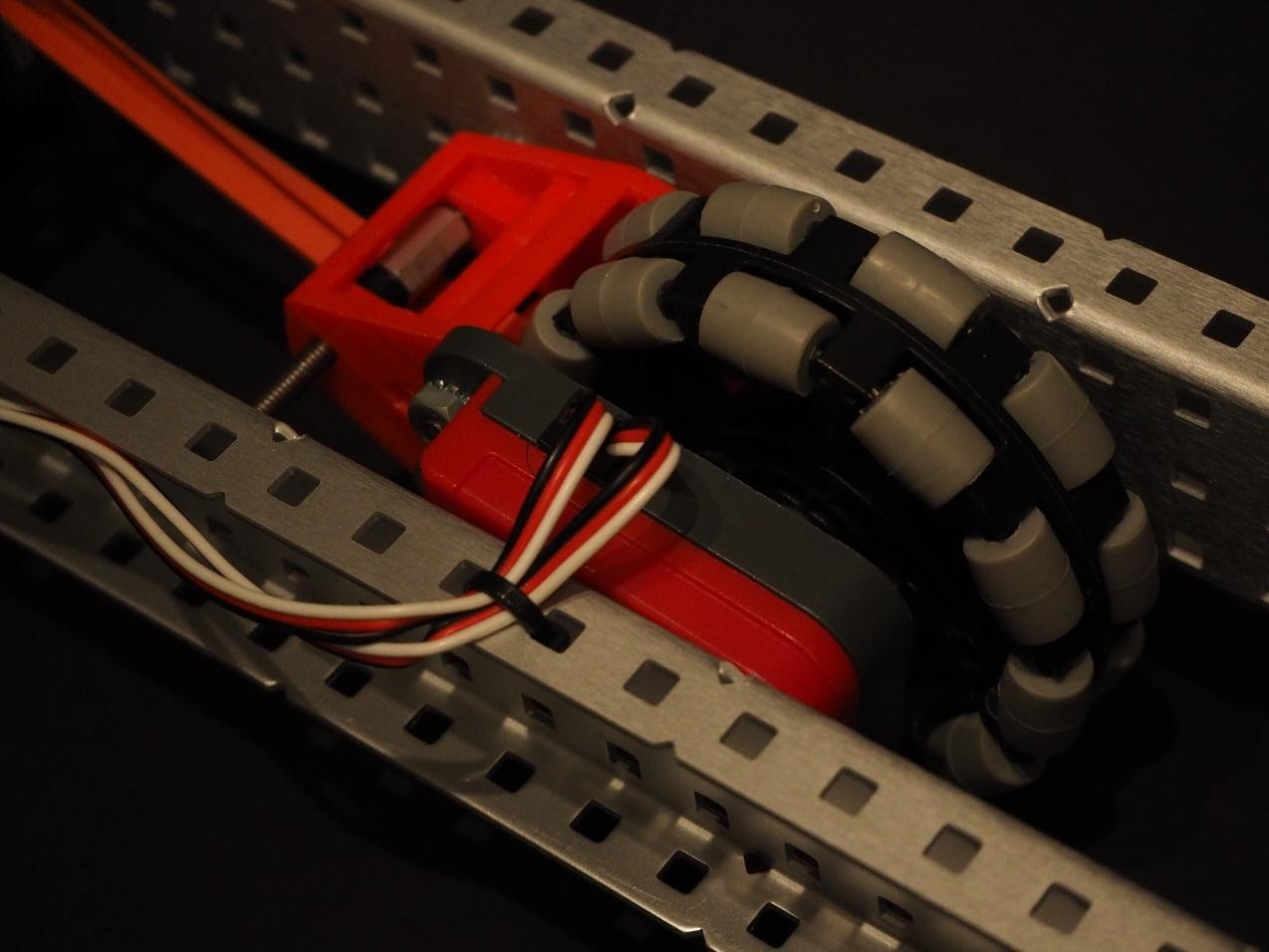

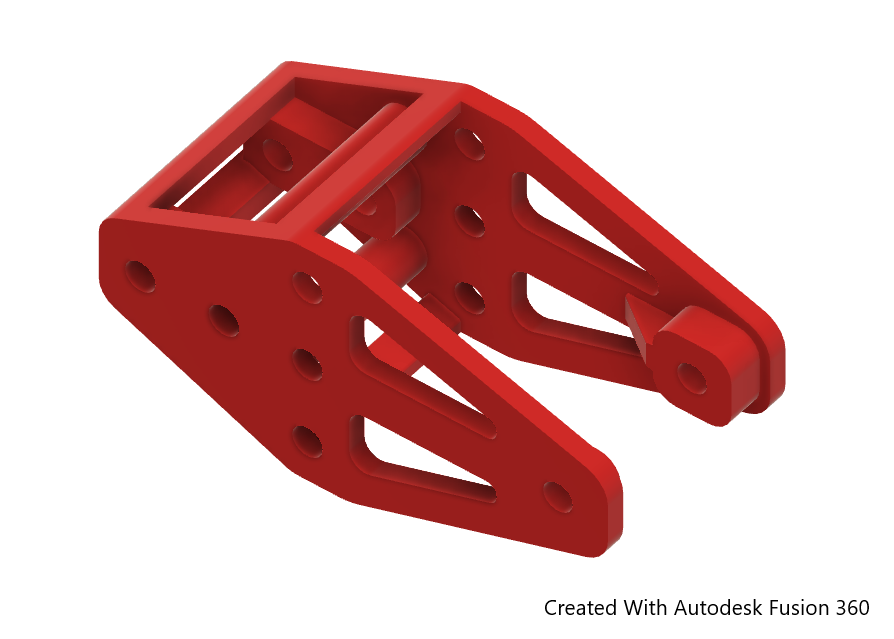

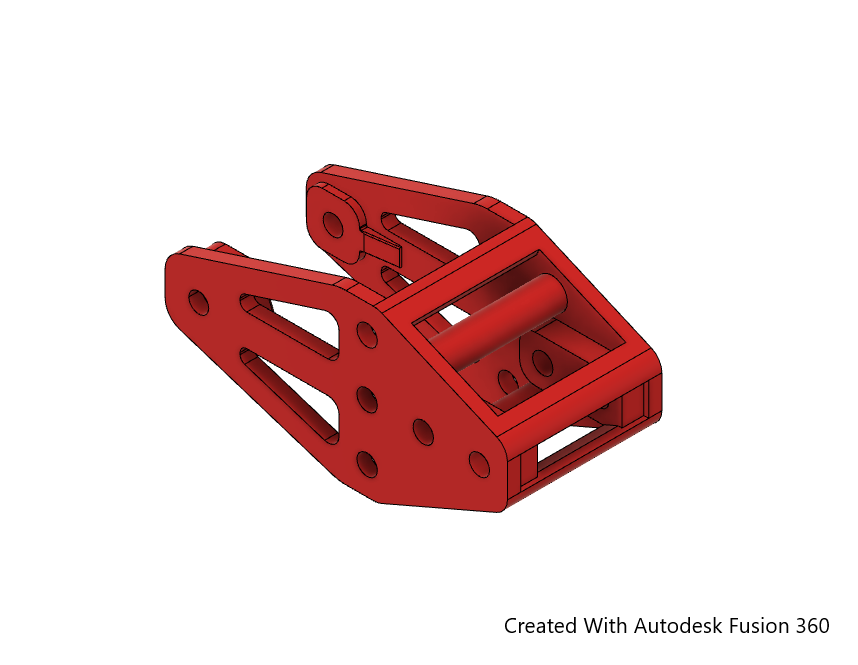

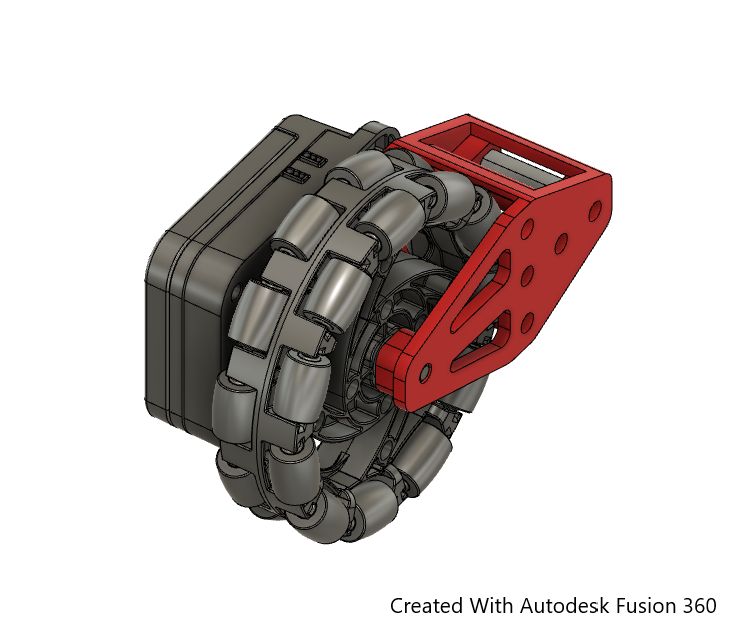

One of the most essential areas to success in VEX Robotics is a strong and consistent autonomous program. However tracking wheels, which are extremely popular mechanisms for autonomous consistency, have a number of design flaws. In this years Autodesk CAD Challenge I designed a custom tracking wheel bracket to eliminate such problems. See attached final report for further details and video for an overview.

Files

Tracking Wheel Bracket Final Report - 2021 Make it Real CAD Challenge (pdf)

Links / Videos

Tracking Wheel Brackets: 2021 Autodesk CAD Challenge

Promotional video showcasing the designed tracking wheel bracket.
