Horner Hornets CAD Designs
jwhalley
Entry ID #: 9319
Created: Thu, Dec 24, 2020 8:50 PM

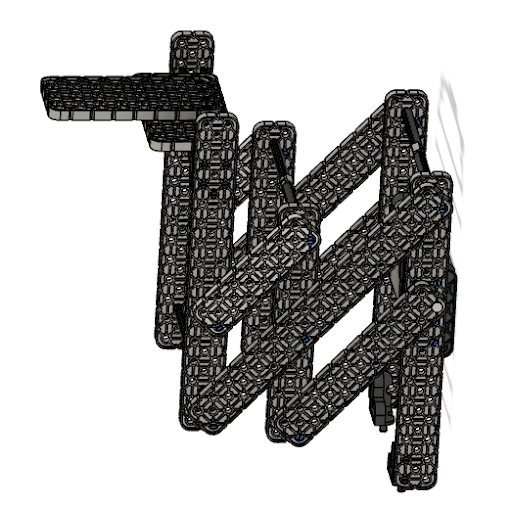

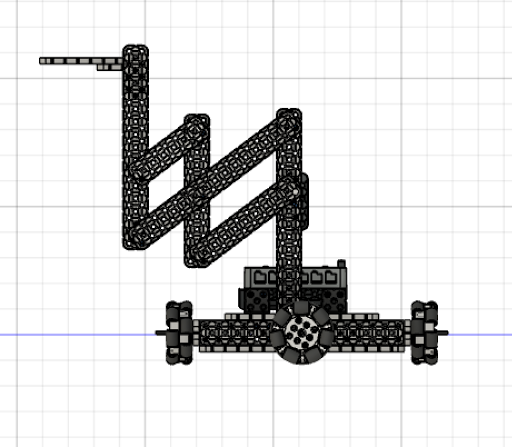

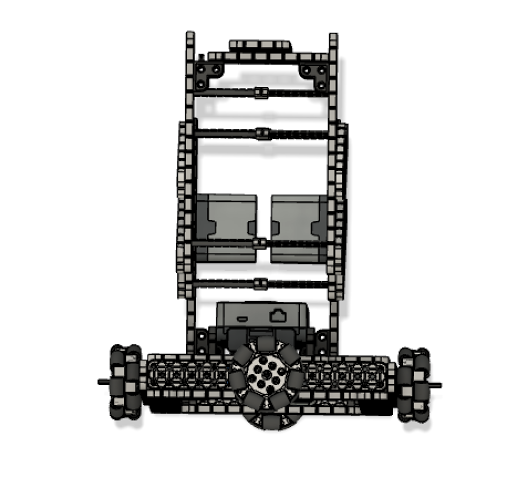

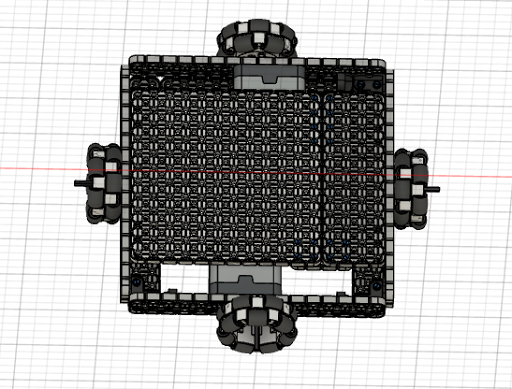

Our team is competing in the 2020-2021 VEXIQ competitions and in particular wanted to compete in this CAD competition. Though my students started with Autodesk Inventor, they found working remotely was much easier with Autodesk Fusion360 and port over all their designs. This porting also made it so they could collaborate better and compete in this competition. After many trials and errors about parts of our robot such as determining the design of our mechanism that would allow the robot to pick up and release objects, we were able to form a final design of our robot and visualize it using Fusion 360. This is the entry for my students robot affectionately named Scrap 6.
Files
Links / Videos
Hello Everyone, Here is my student team's video on the CAD aspect of the competition. This is a link to their formally edited video. Thanks!
