8-Post Hex Nut Retainer Kit

huang.t.evan
Entry ID #: 10291
Created: Mon, Jan 17, 2022 2:28 AM

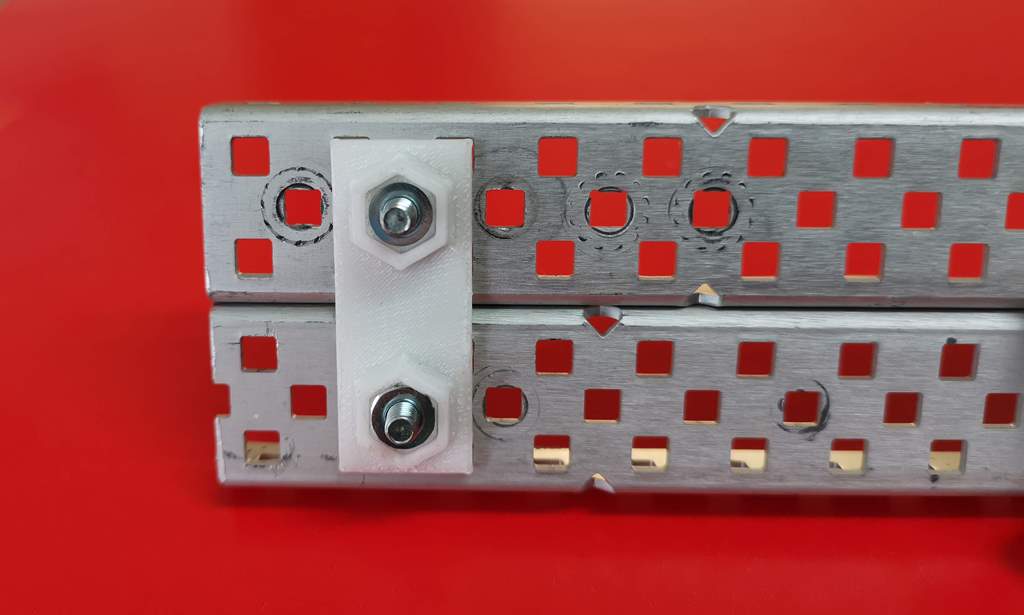

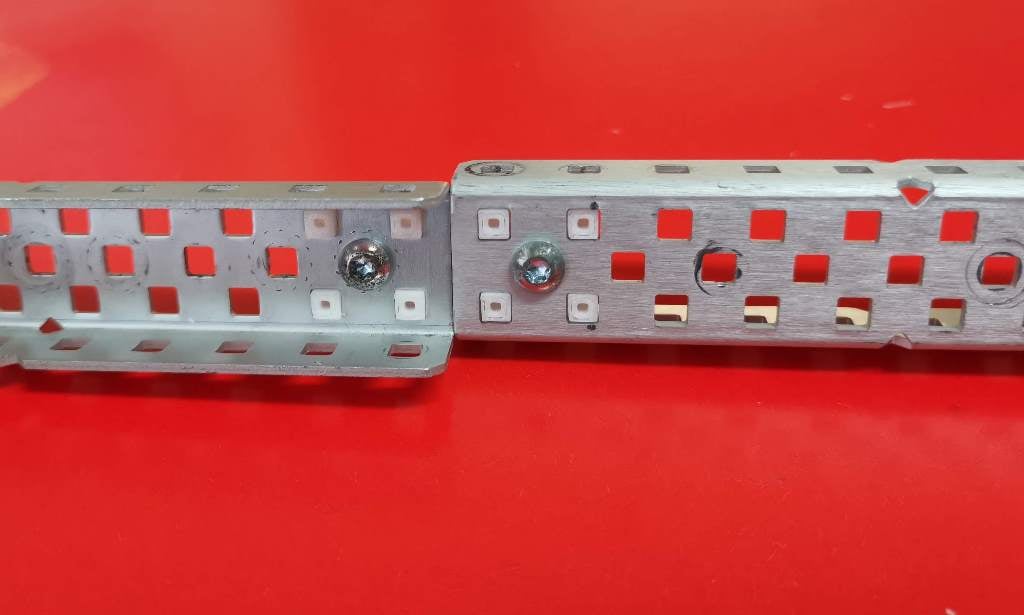

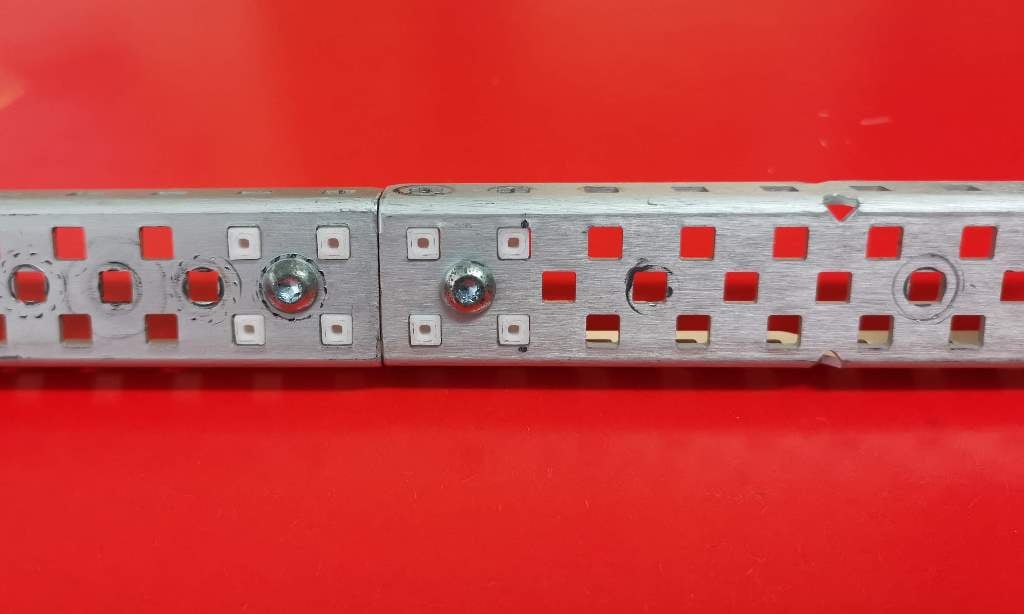

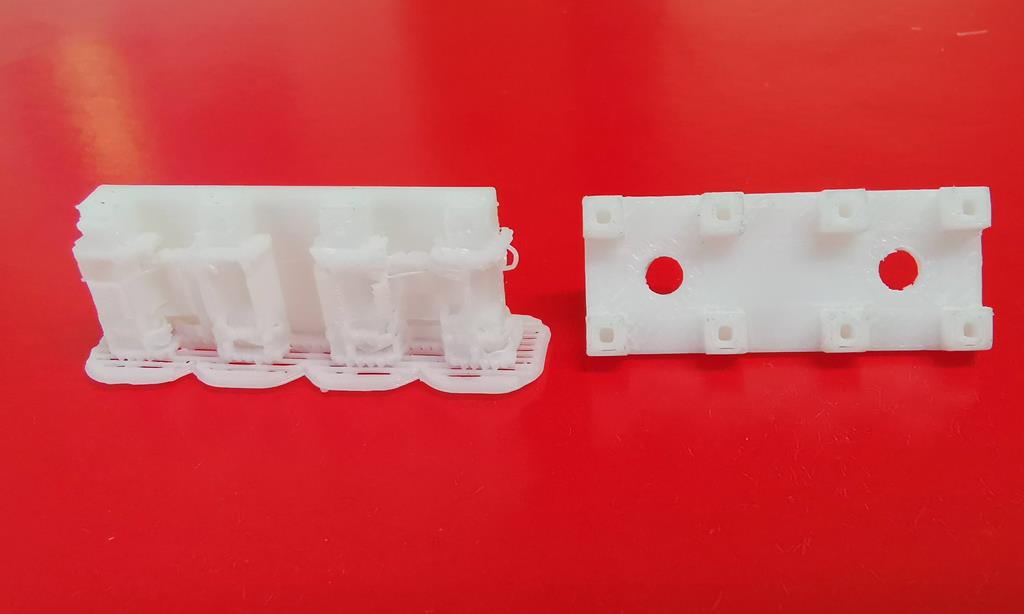

The 8-Post Hex Nut Retainer Kit is developed for the VEX robotics competition. The purpose of this kit is to connect two pieces of structural metal easily. The kit has two components: The 8-Post Hex Nut Retainer and the 8-Post Hex Nut Retainer Corner Connector. This project uses Autodesk® Fusion 360™.

Links / Videos

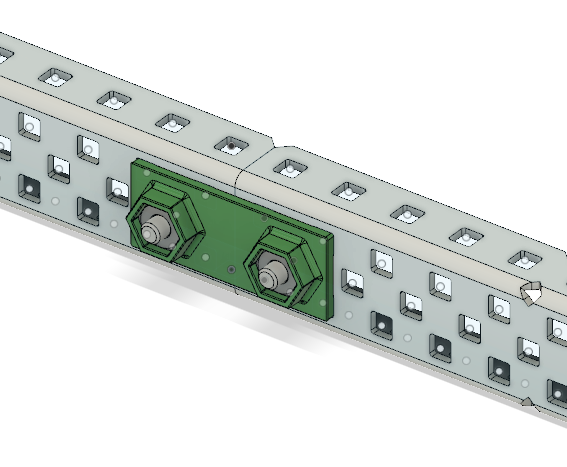

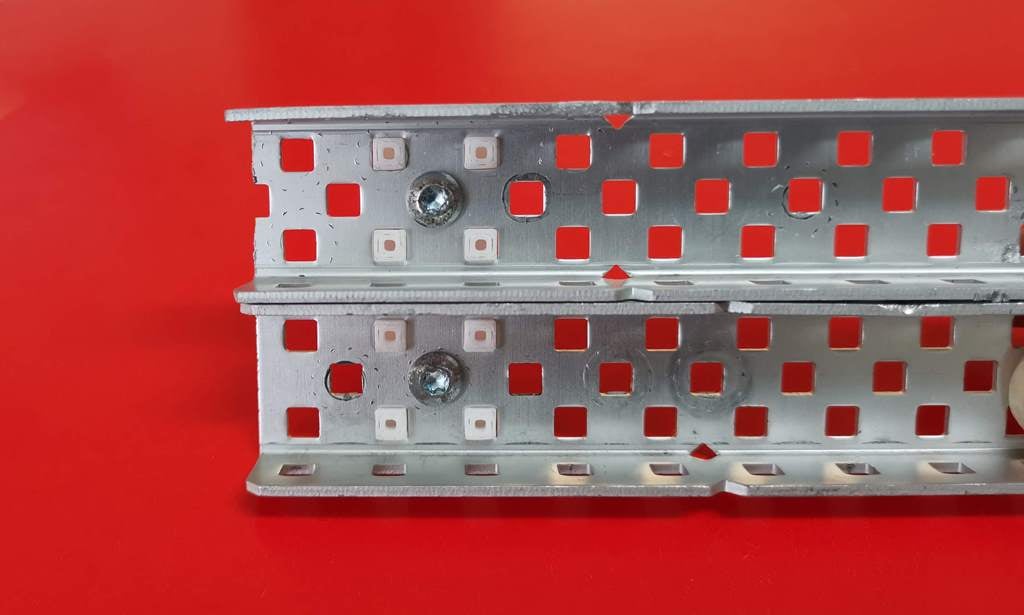

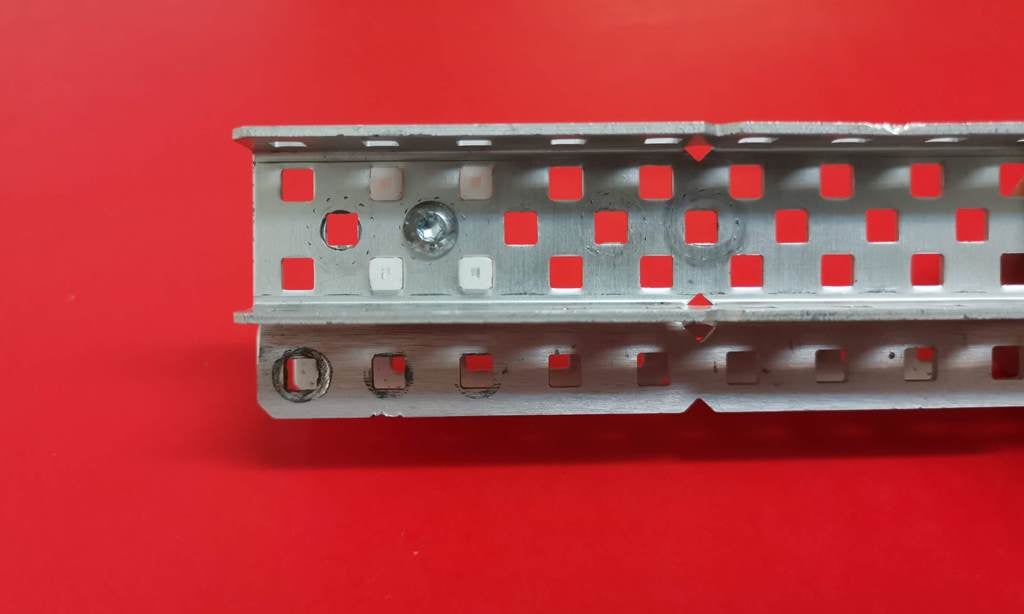

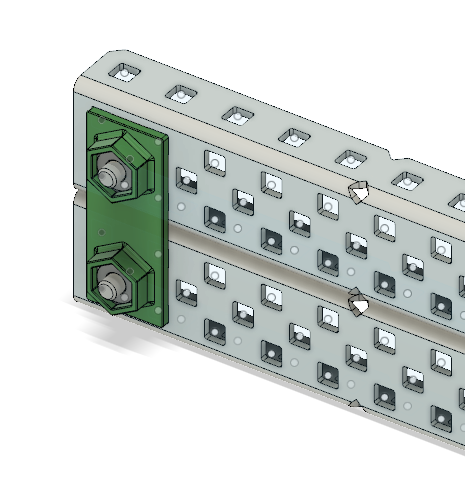

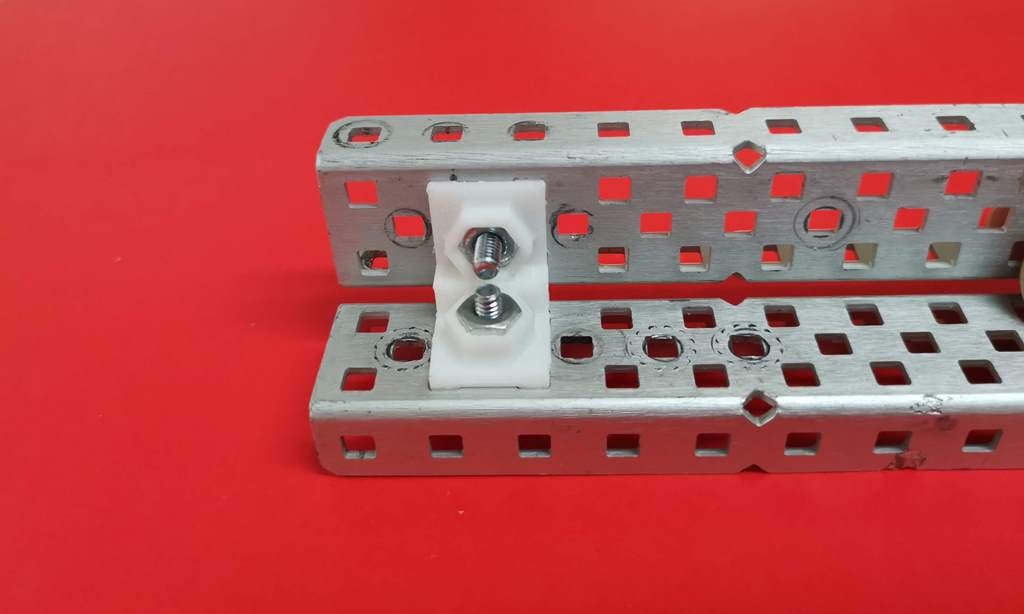

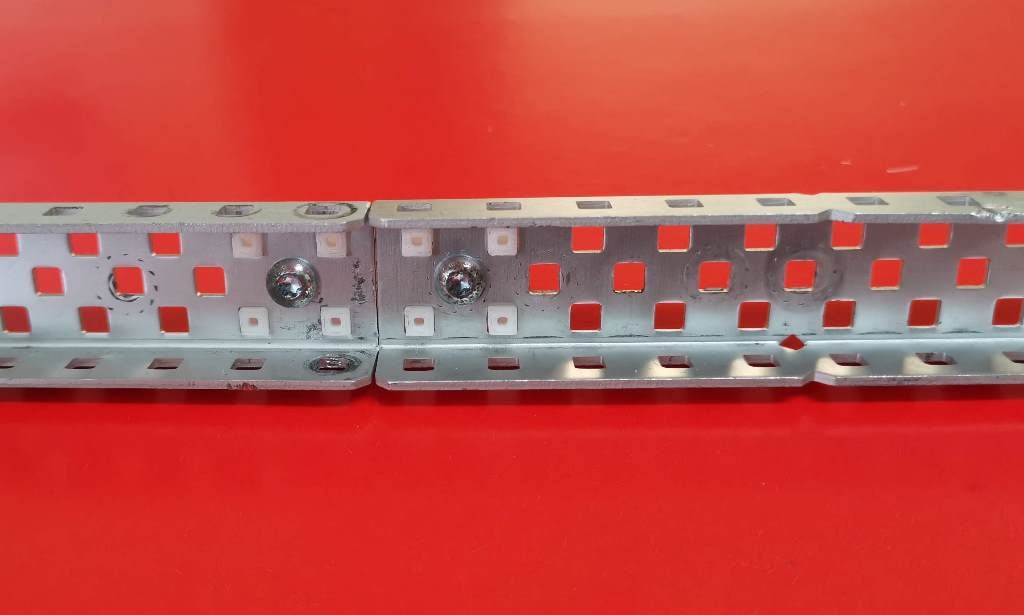

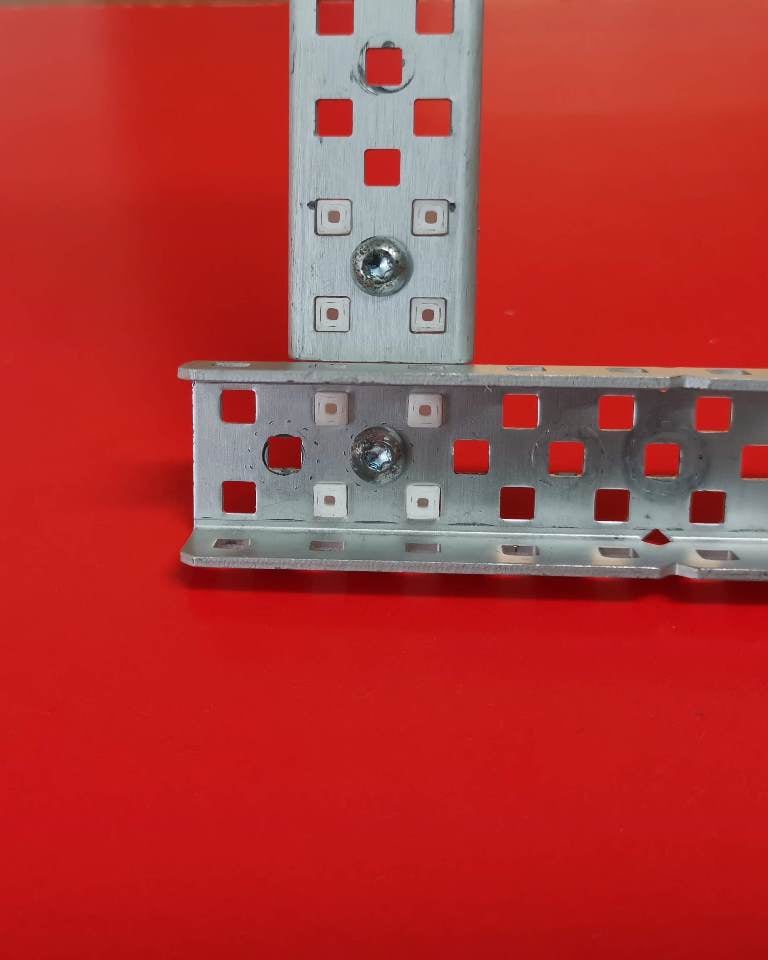

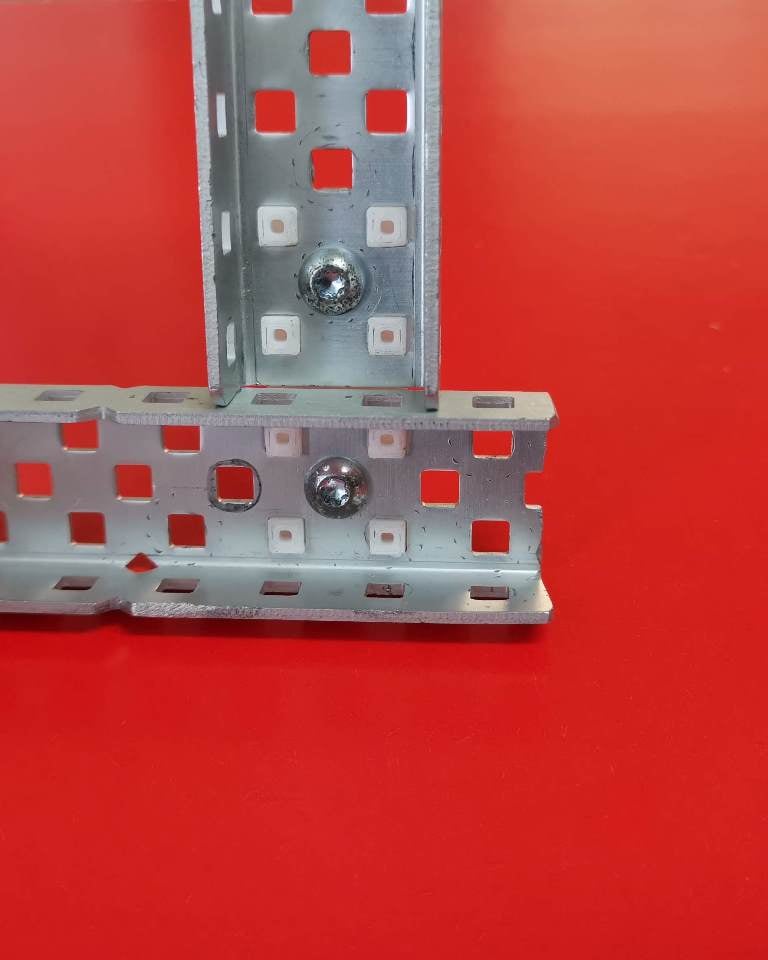

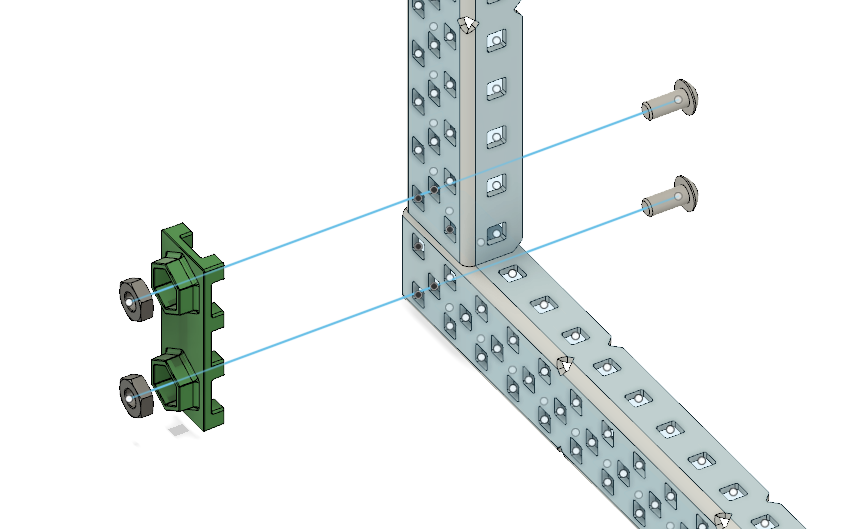

An animation of the assembly of the 8-Post Hex Nut Retainer. This is just one of its uses.

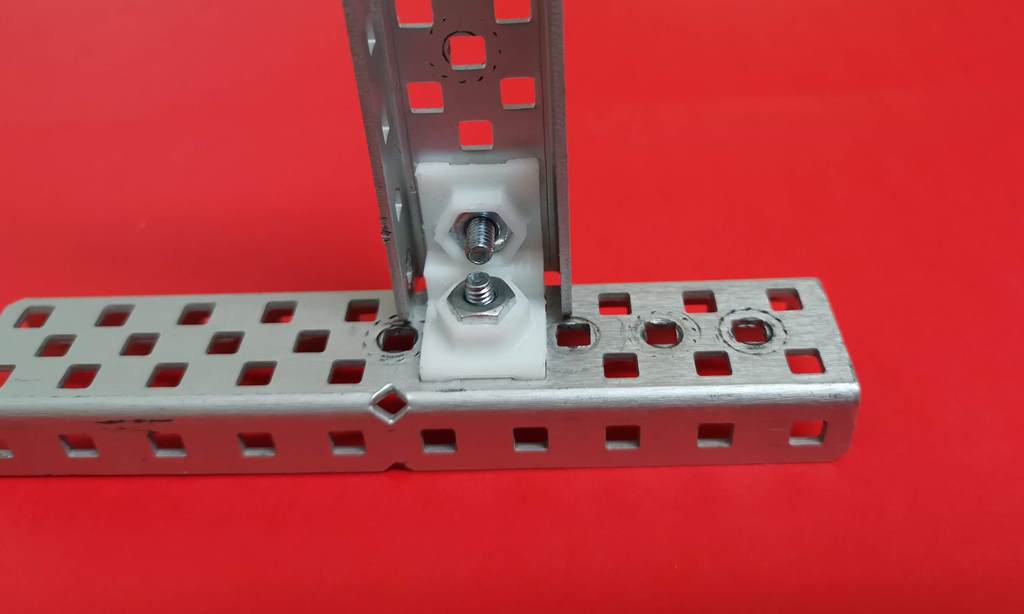

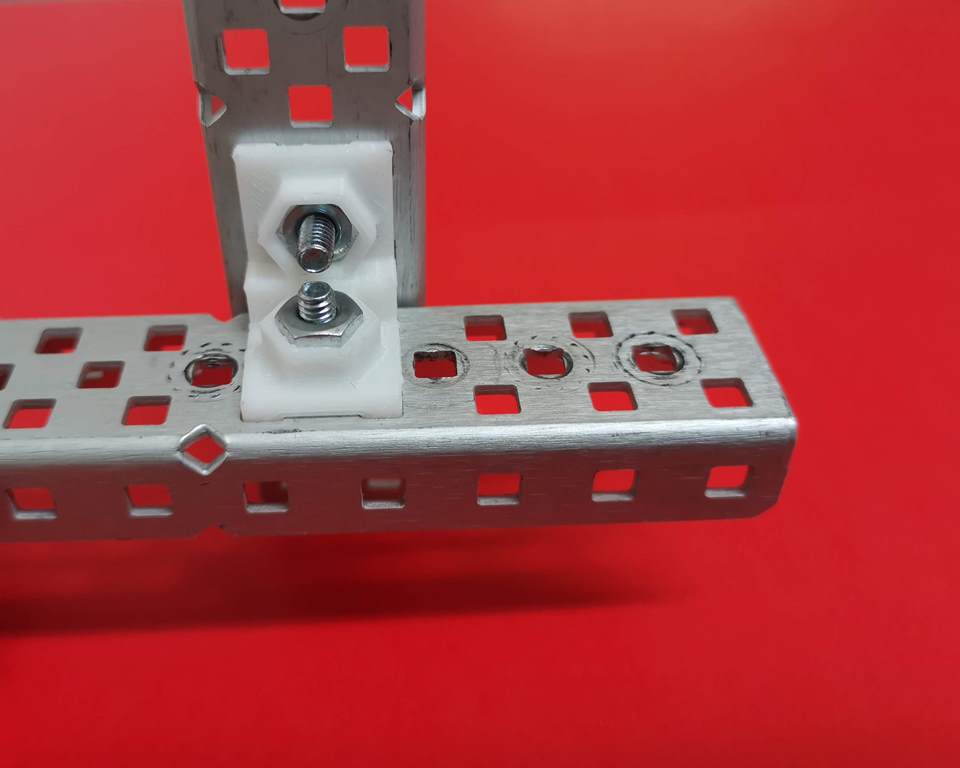

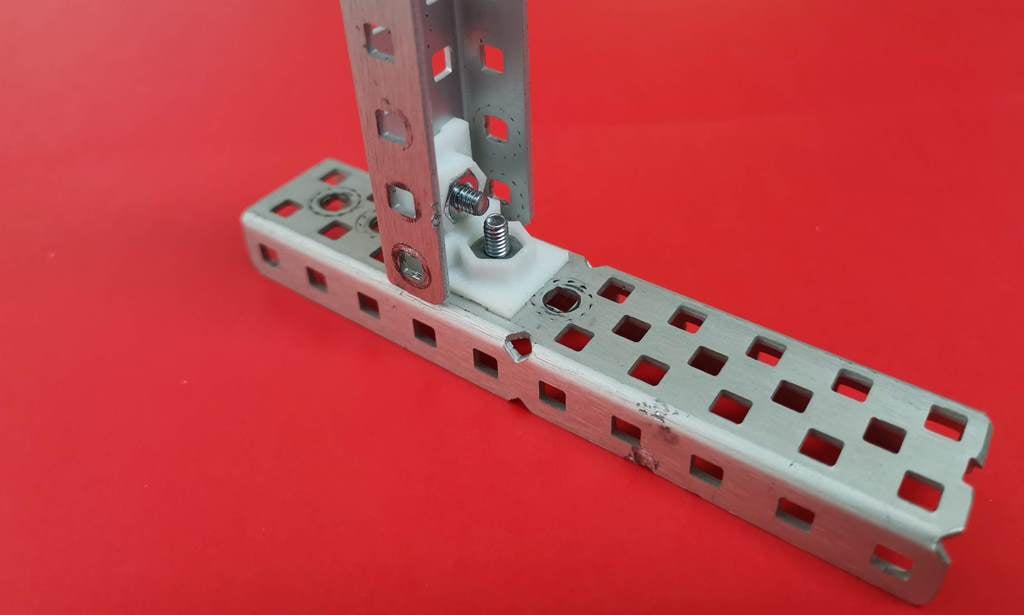

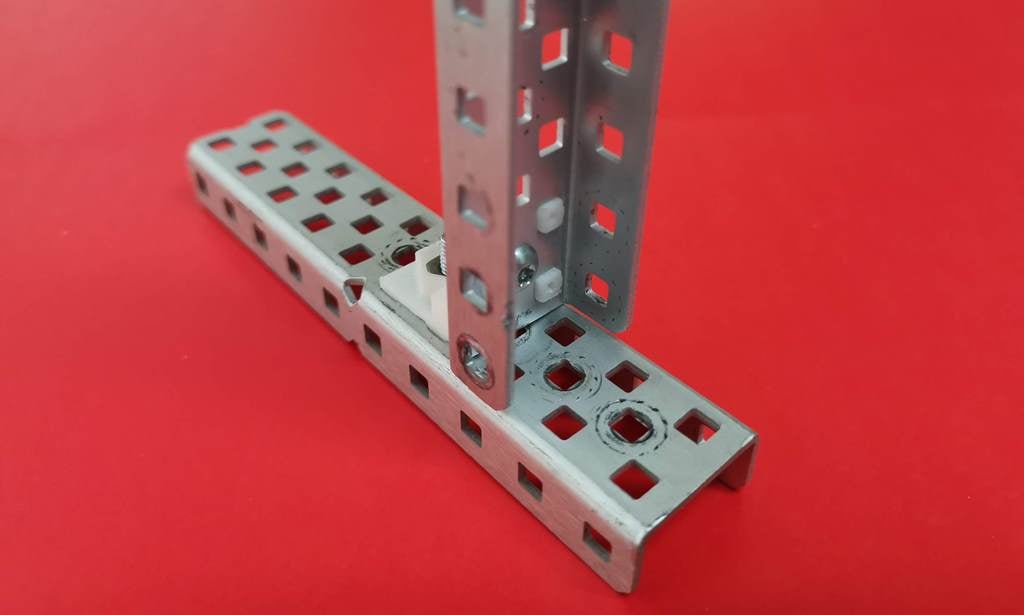

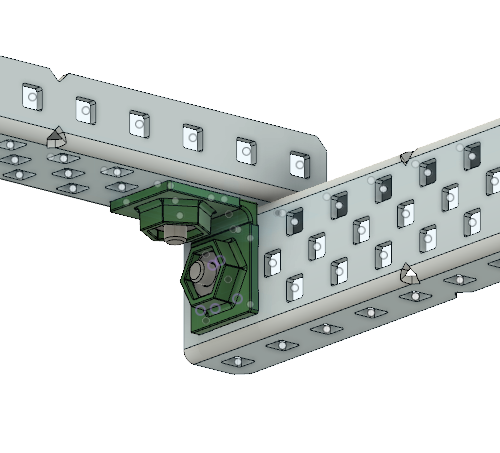

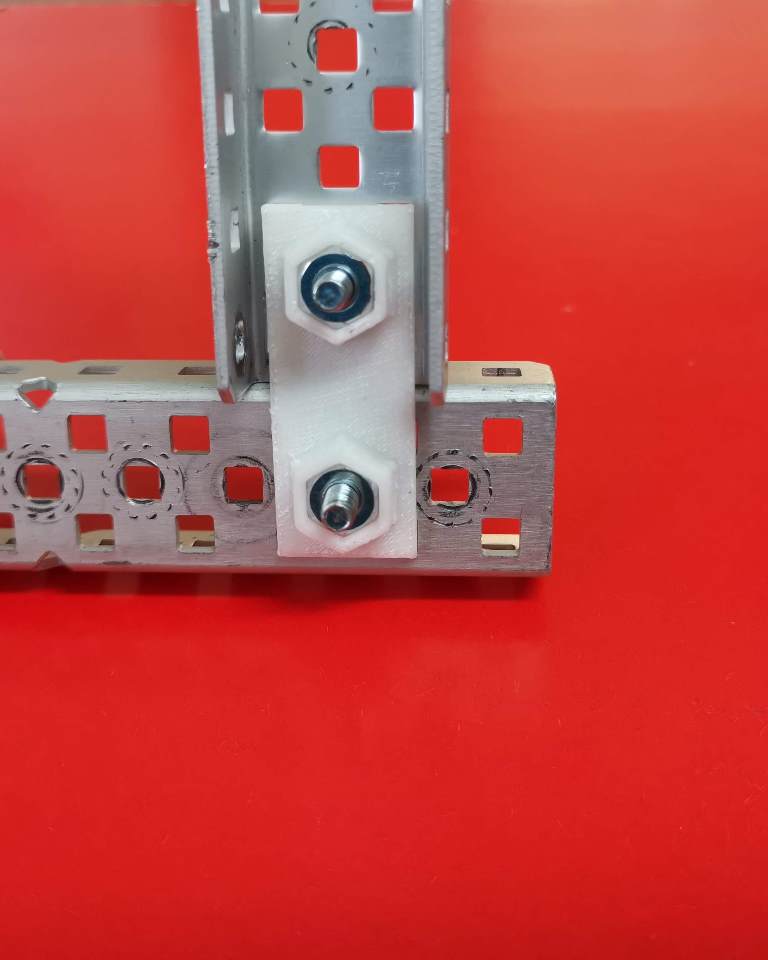

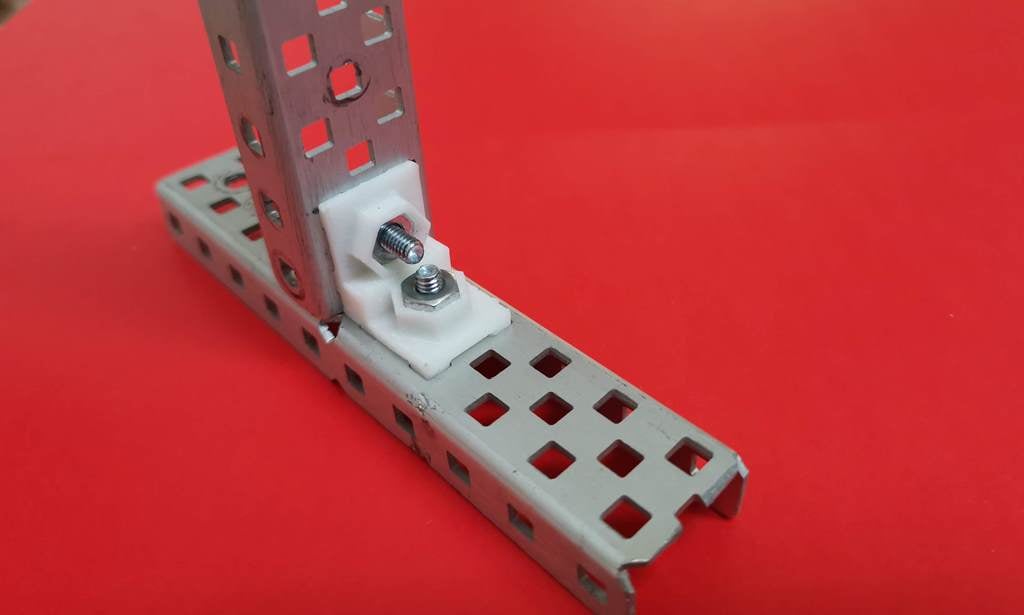

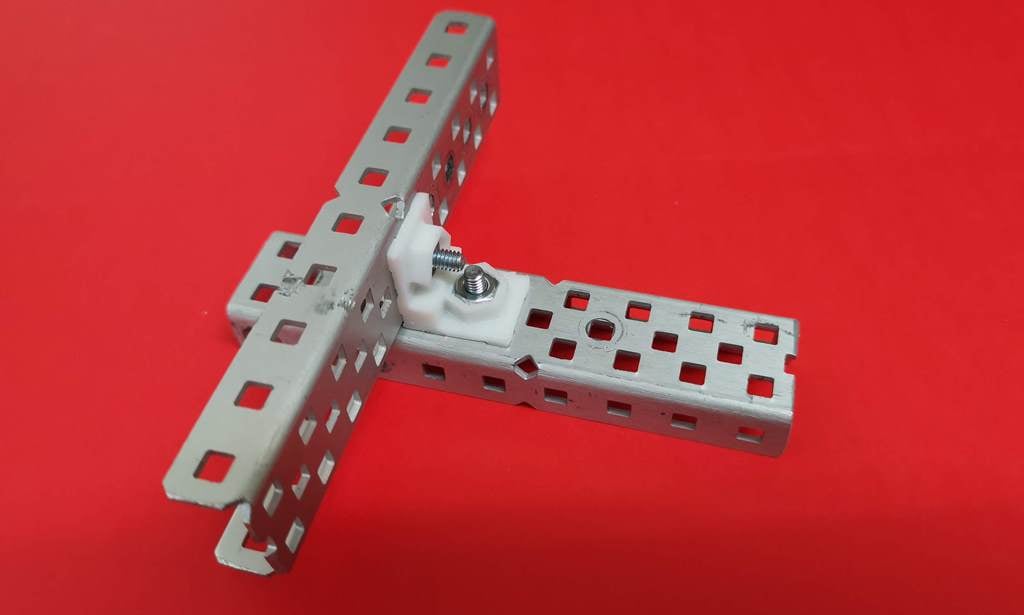

An animation of the assembly of the Corner Connector. This is just one of its uses.

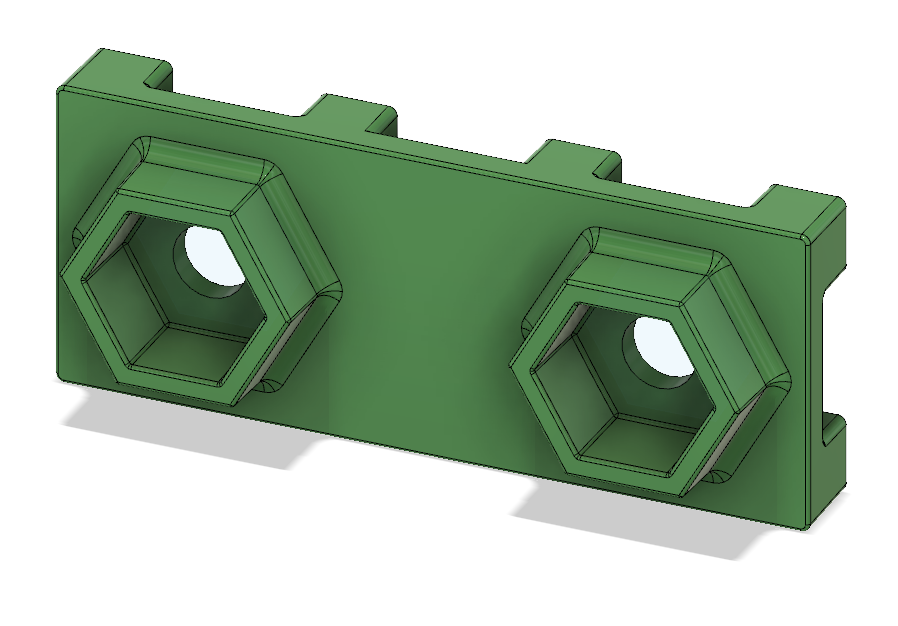

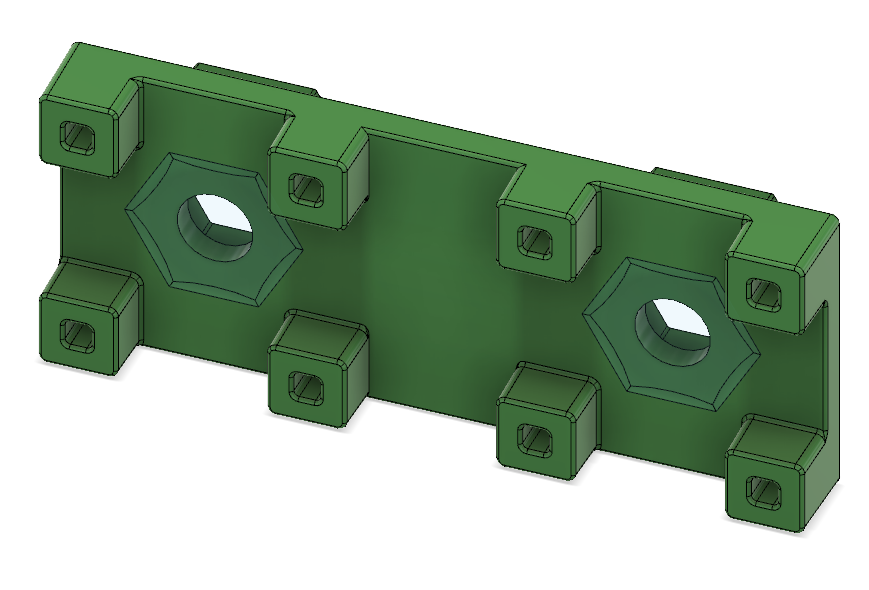

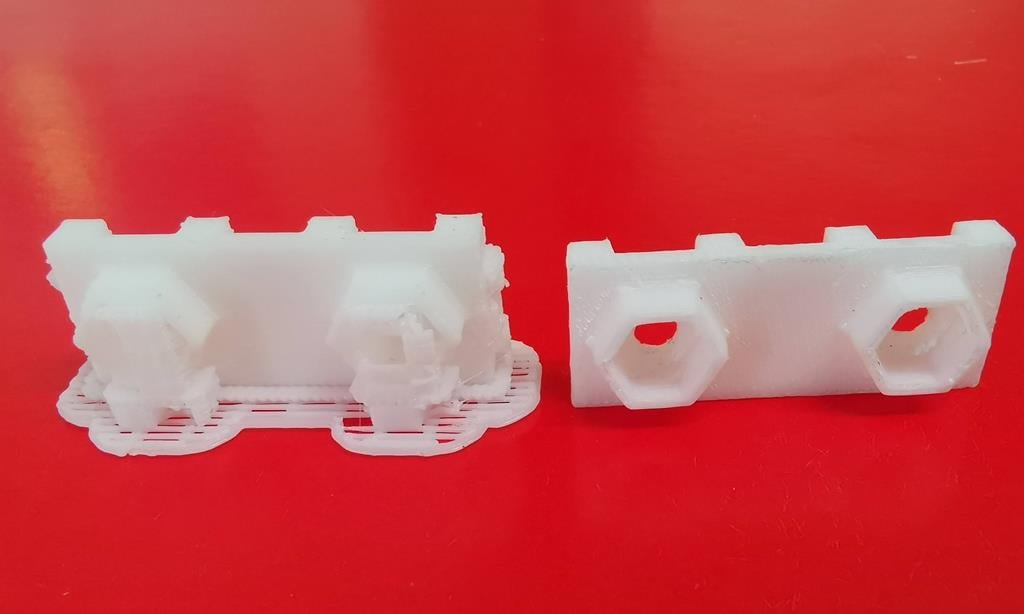

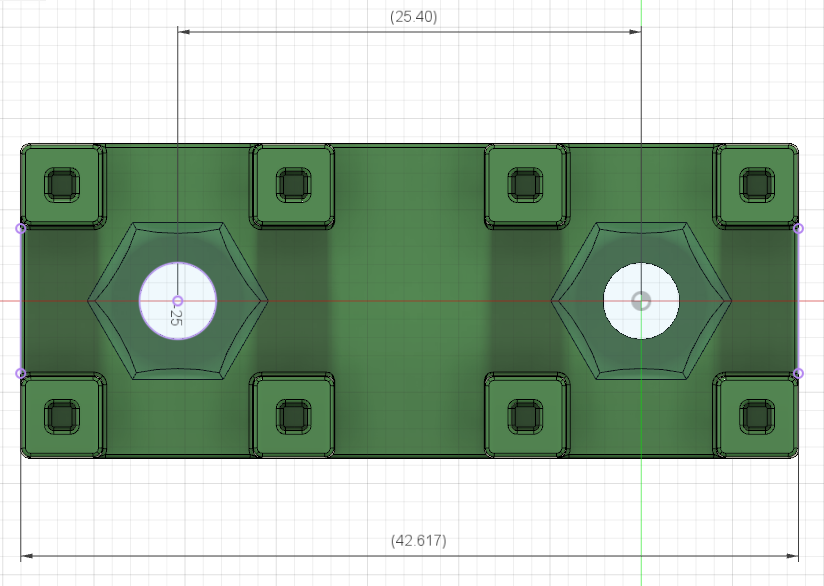

An animation of the 8-Post Hex Nut Retainer

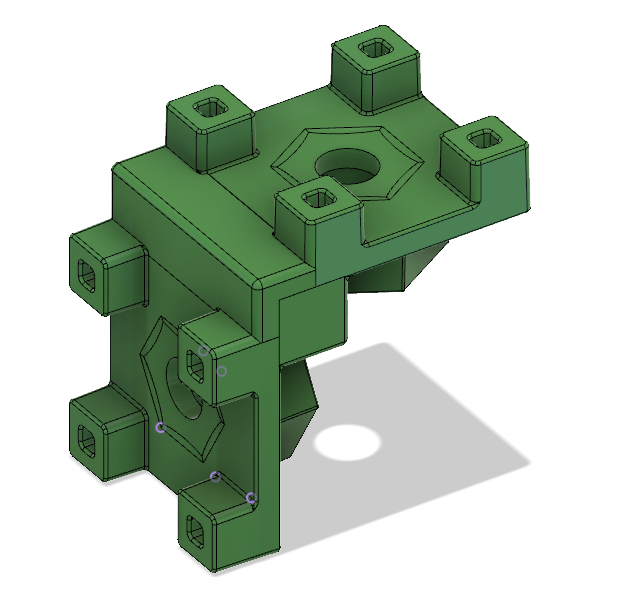

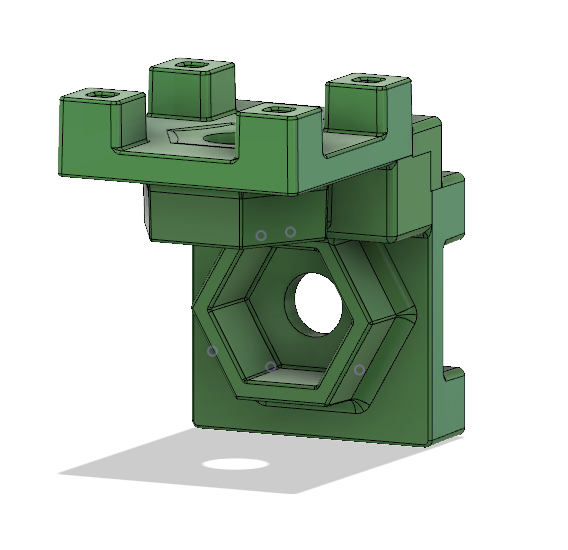

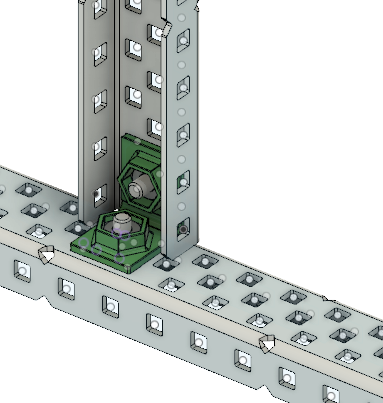

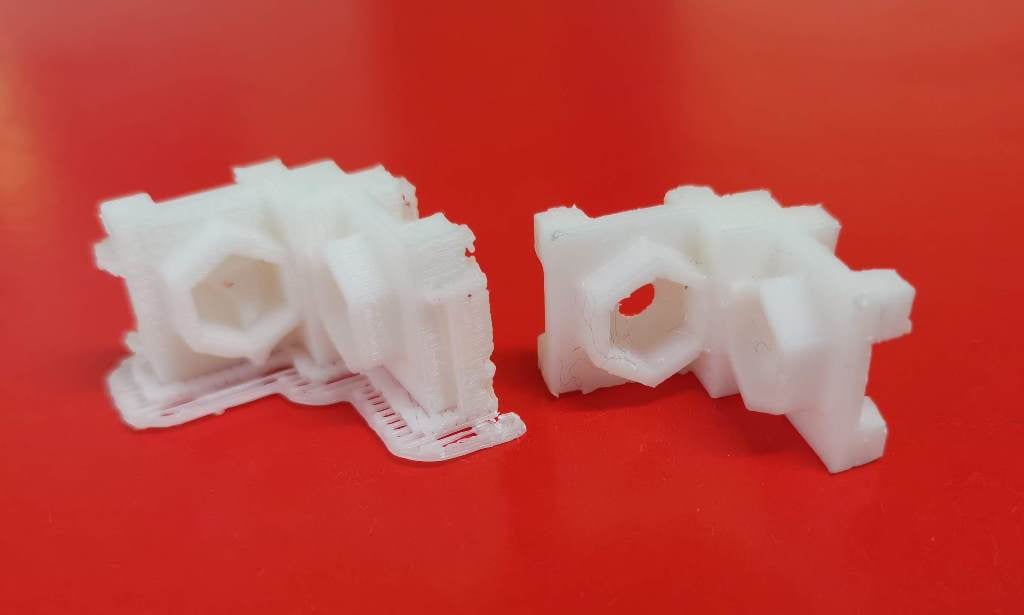

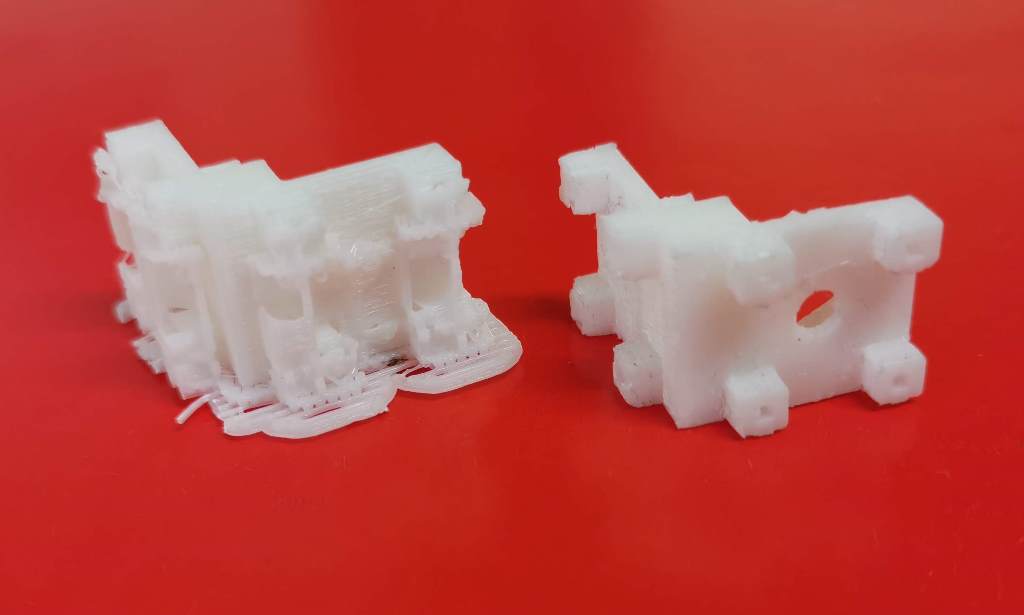

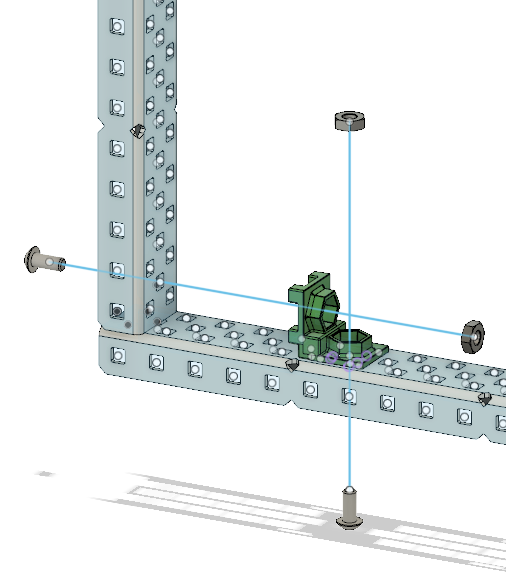

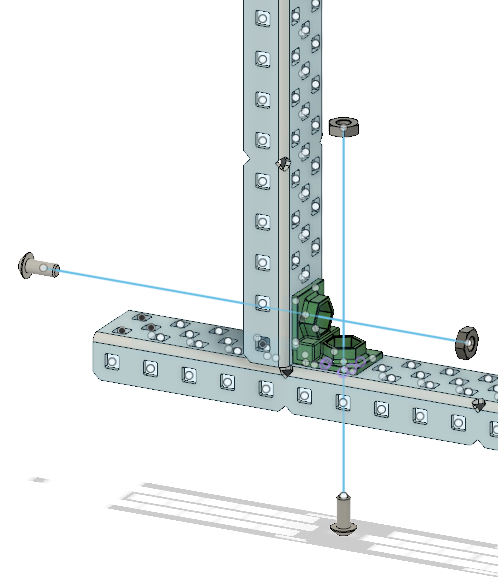

An animation of the Corner Connector

Comments

   Murad Malik:) on 01/31/2022

what benefits does this part have against gussets and a small piece of c-channel?
