Linear Motion Gear Attachment


Entry ID #: 3426
Created: Tue, Jan 10, 2017 8:13 PM

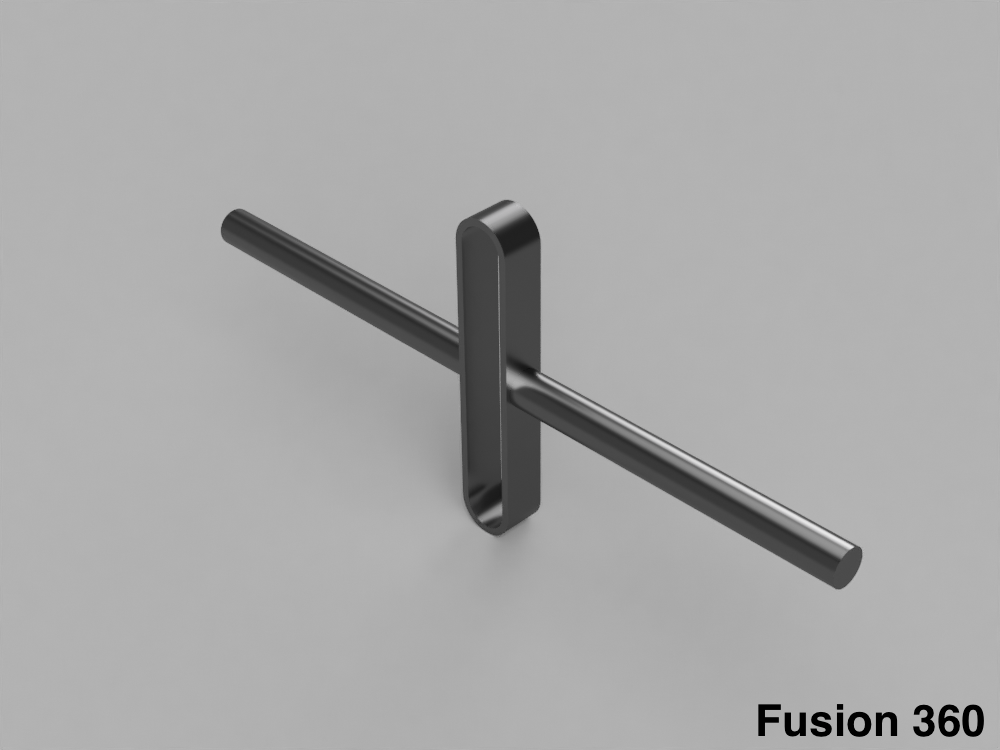

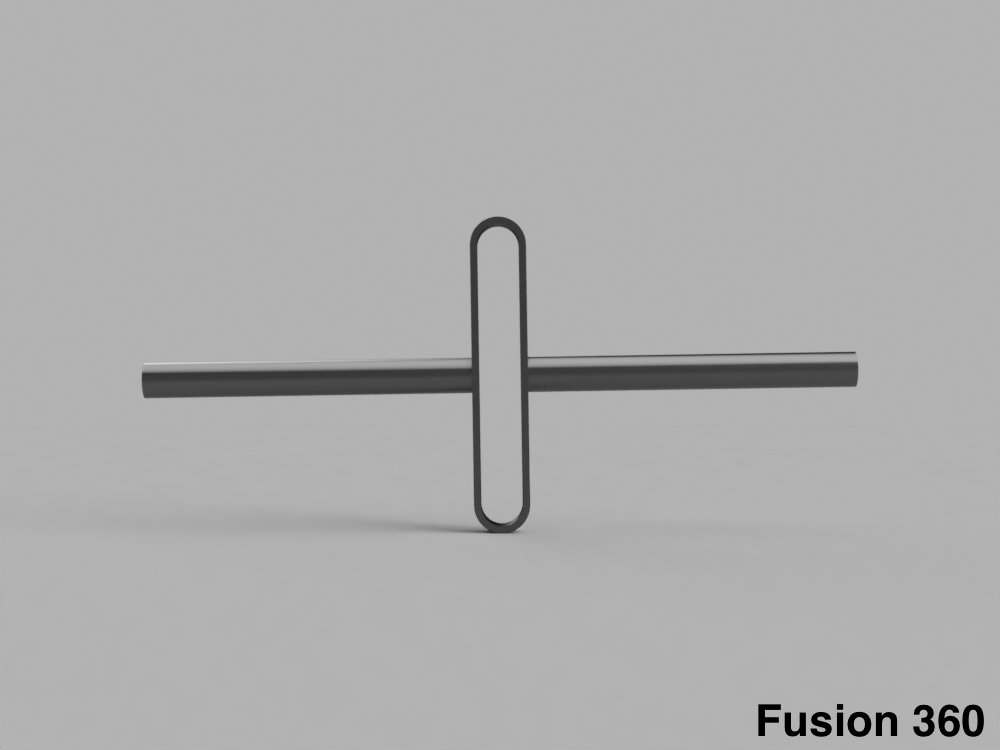

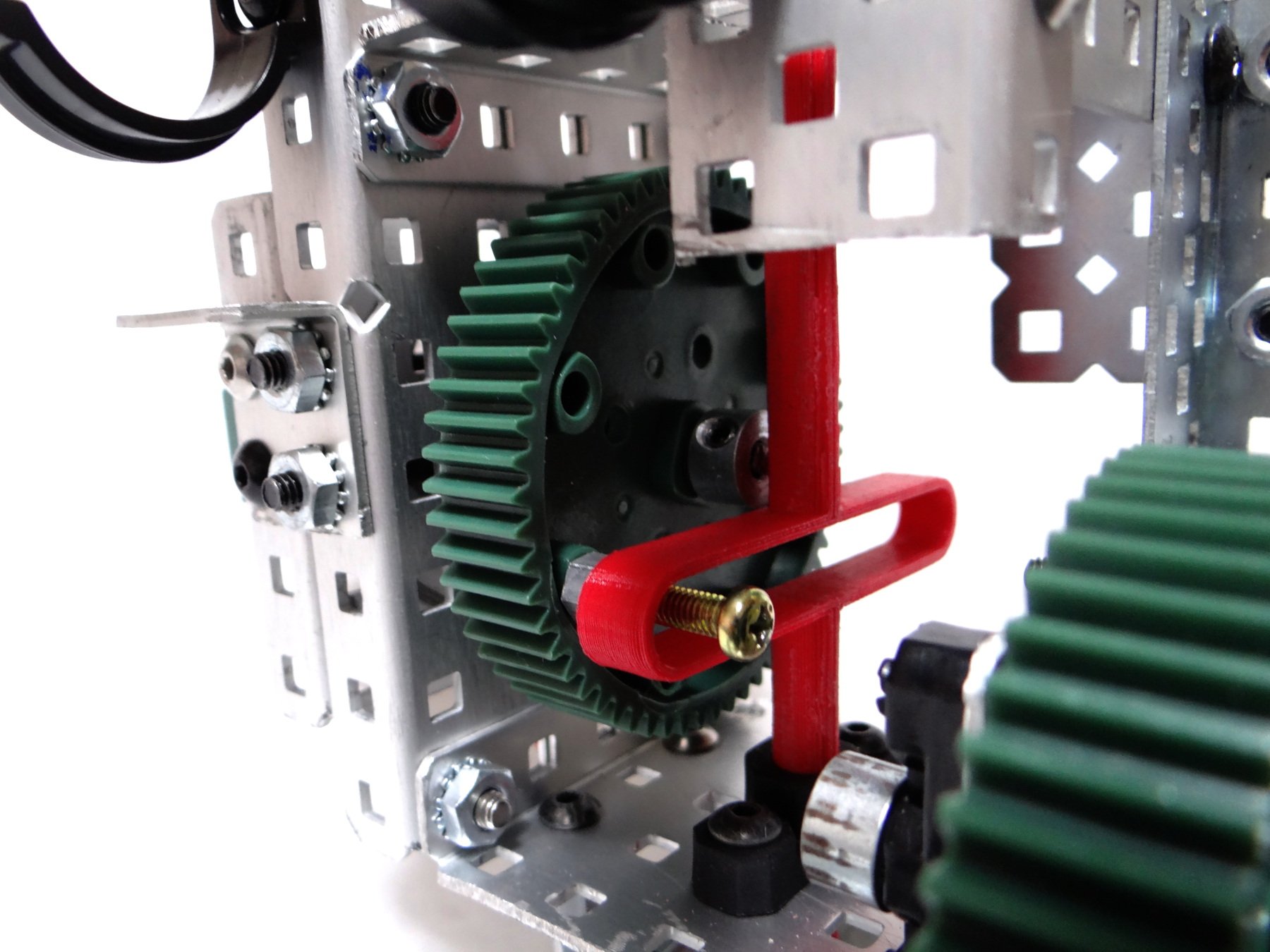

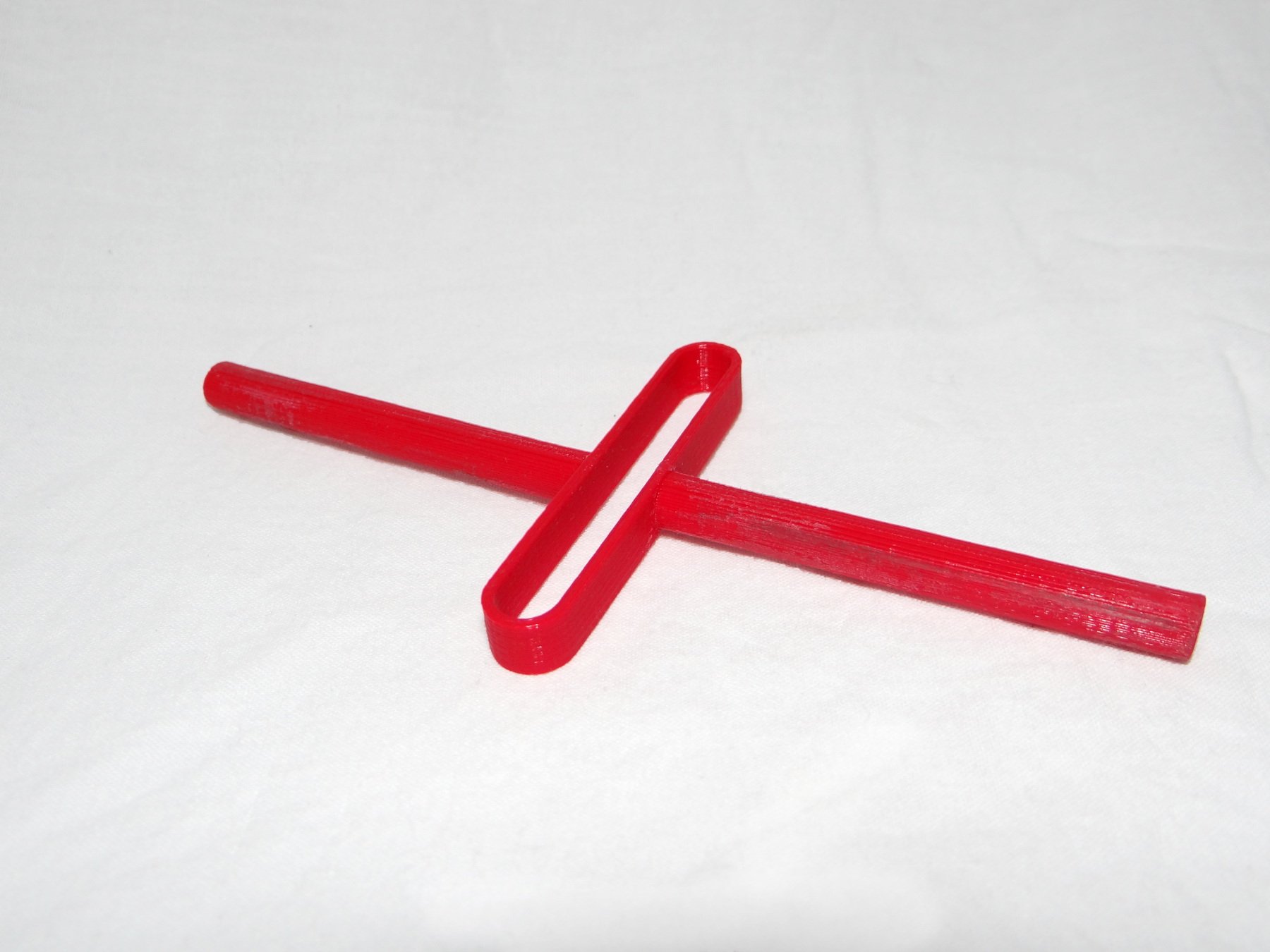

Our team came up with a simple solution to a missing type of VEX piece. We wanted to make a powered linear motion that wasn't as slow as and bulky as the pneumatics system. We created a simple yoke like gear attachment that would be used to convert the rotary motion of the gears to linear piston-like motion.

Links / Videos

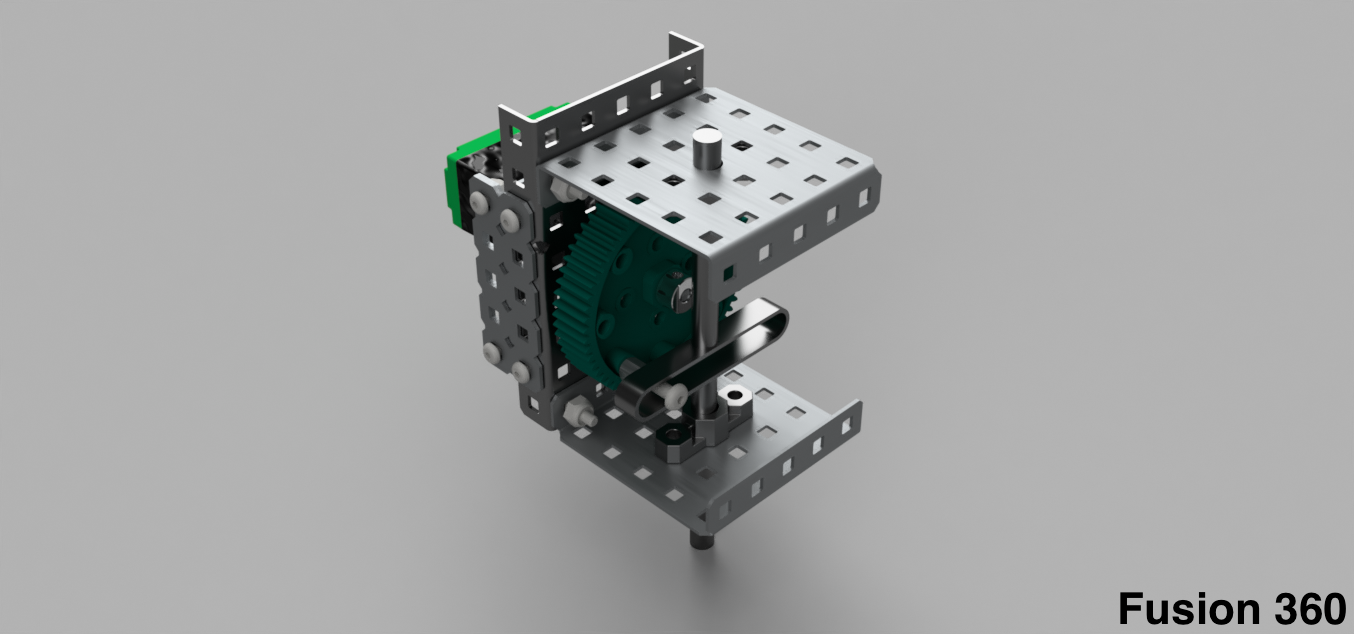

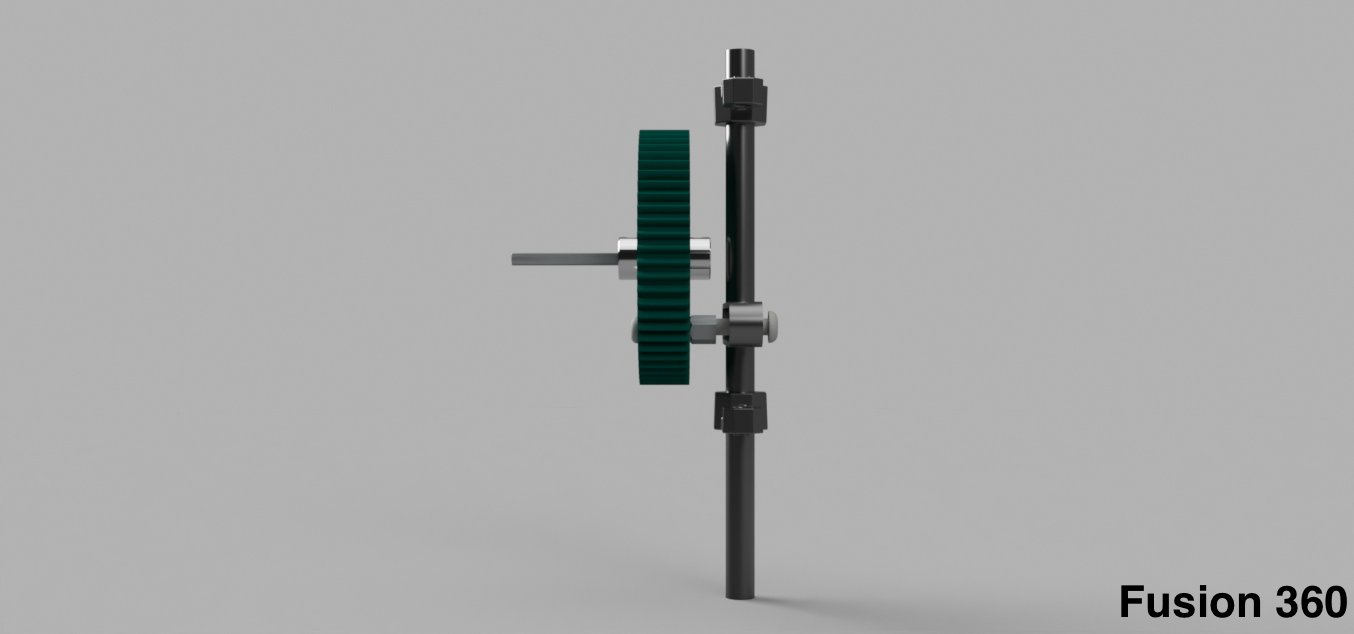

An animation demonstrating the structure of the piano player, the sliding motion that it does down the keys, and the spinning gear moving the linear motion gear attachment.
