Bevel Gear Bracket 2.0


Entry ID #: 5455
Created: Wed, Jan 10, 2018 11:24 AM

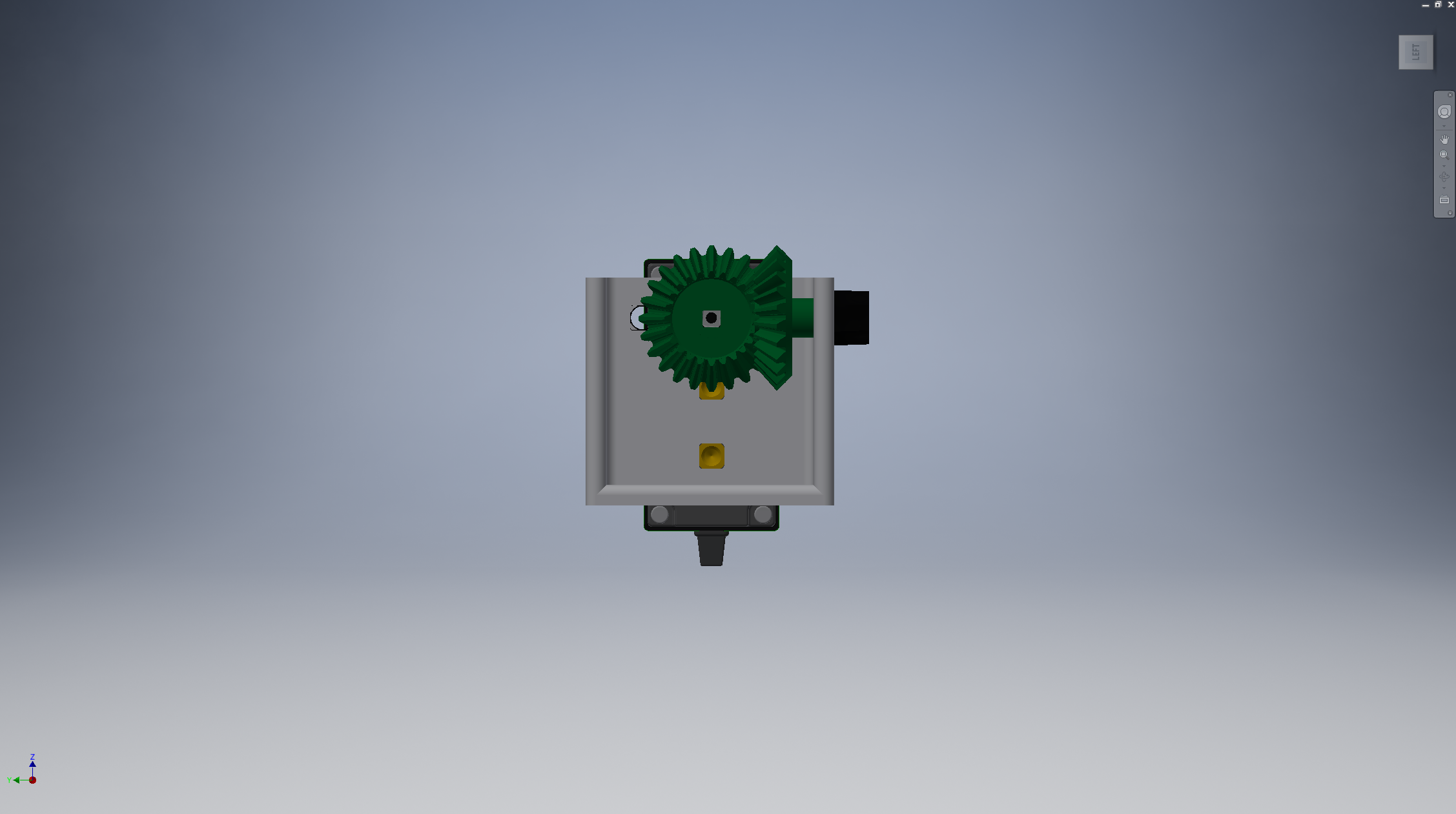

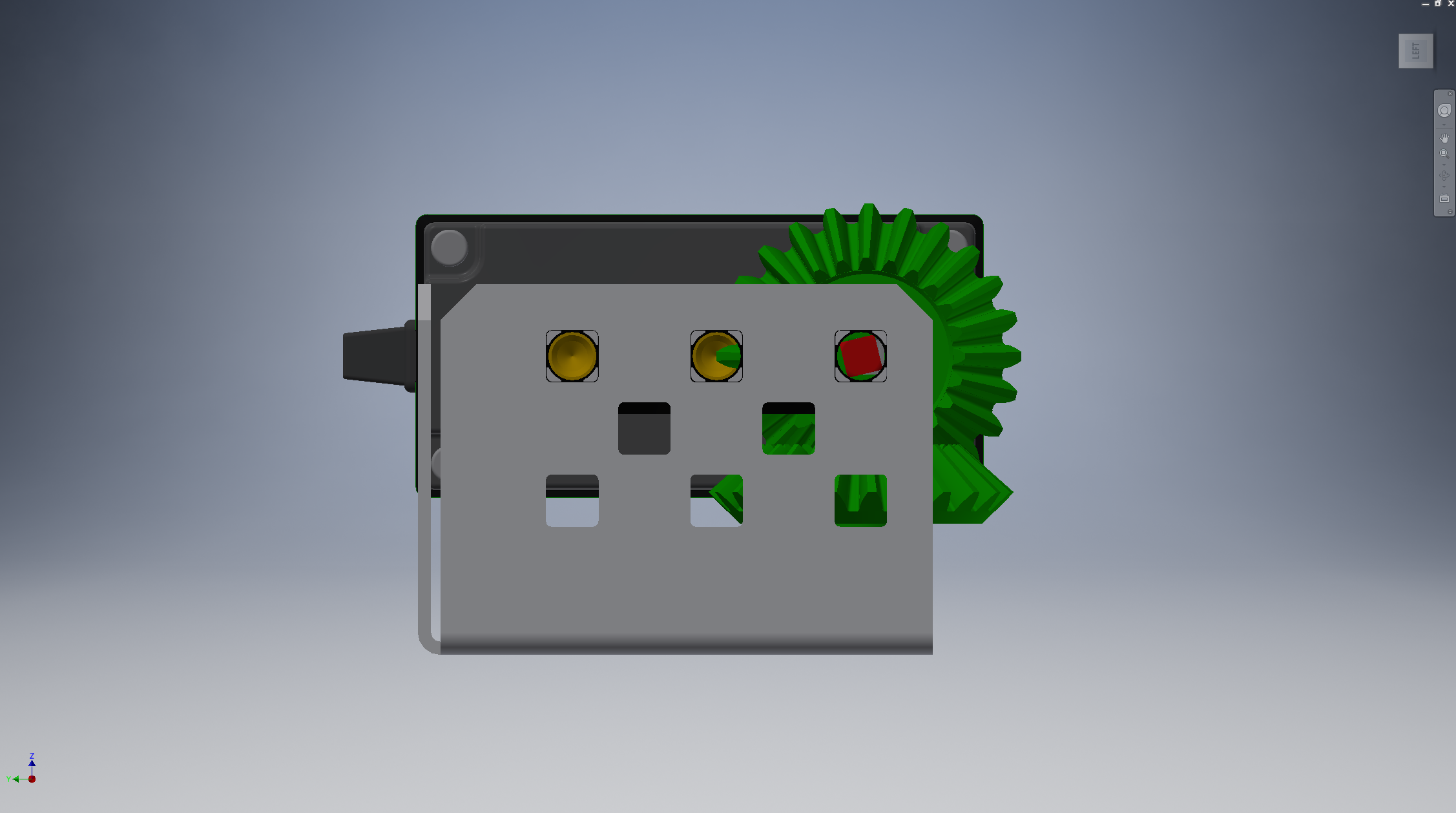

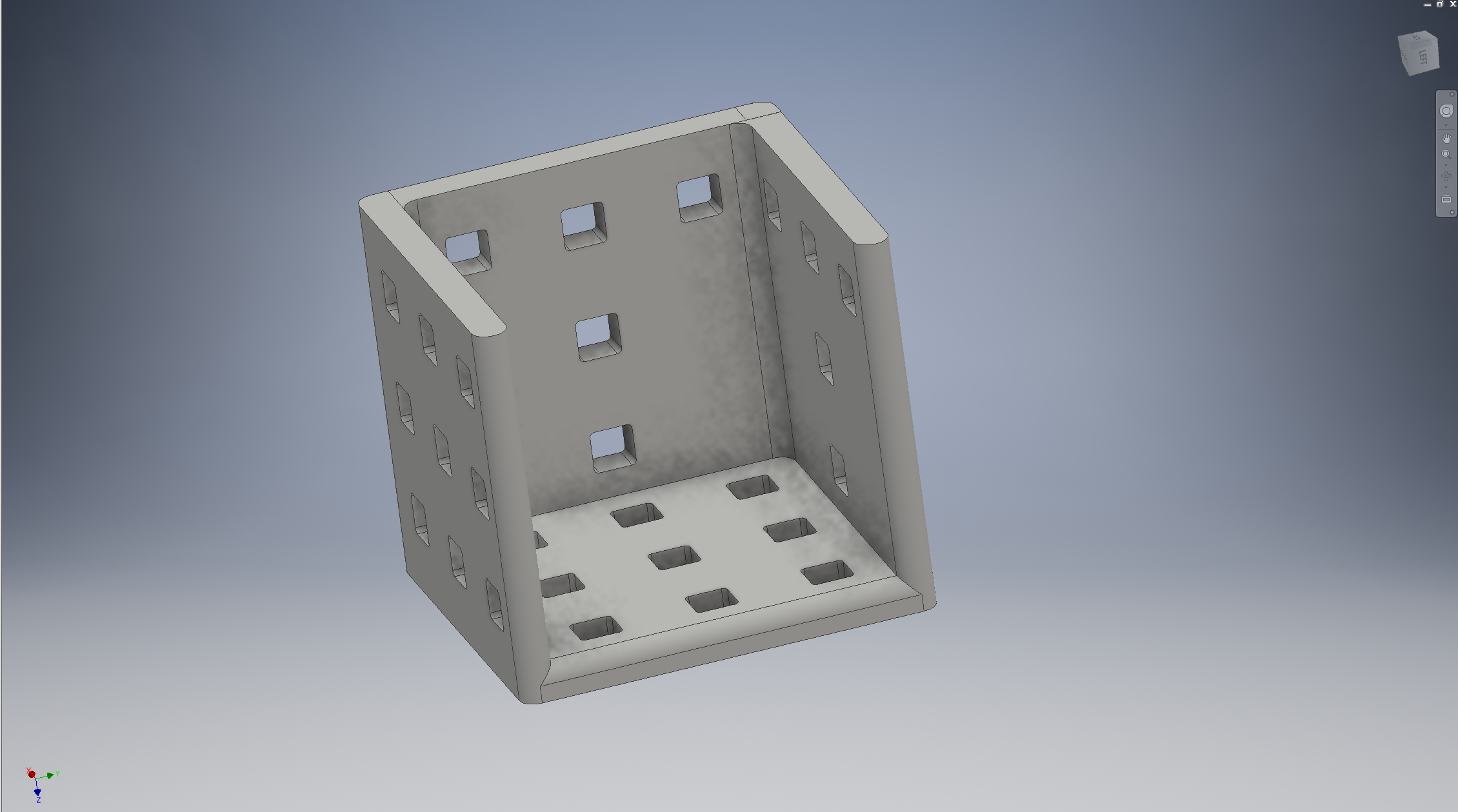

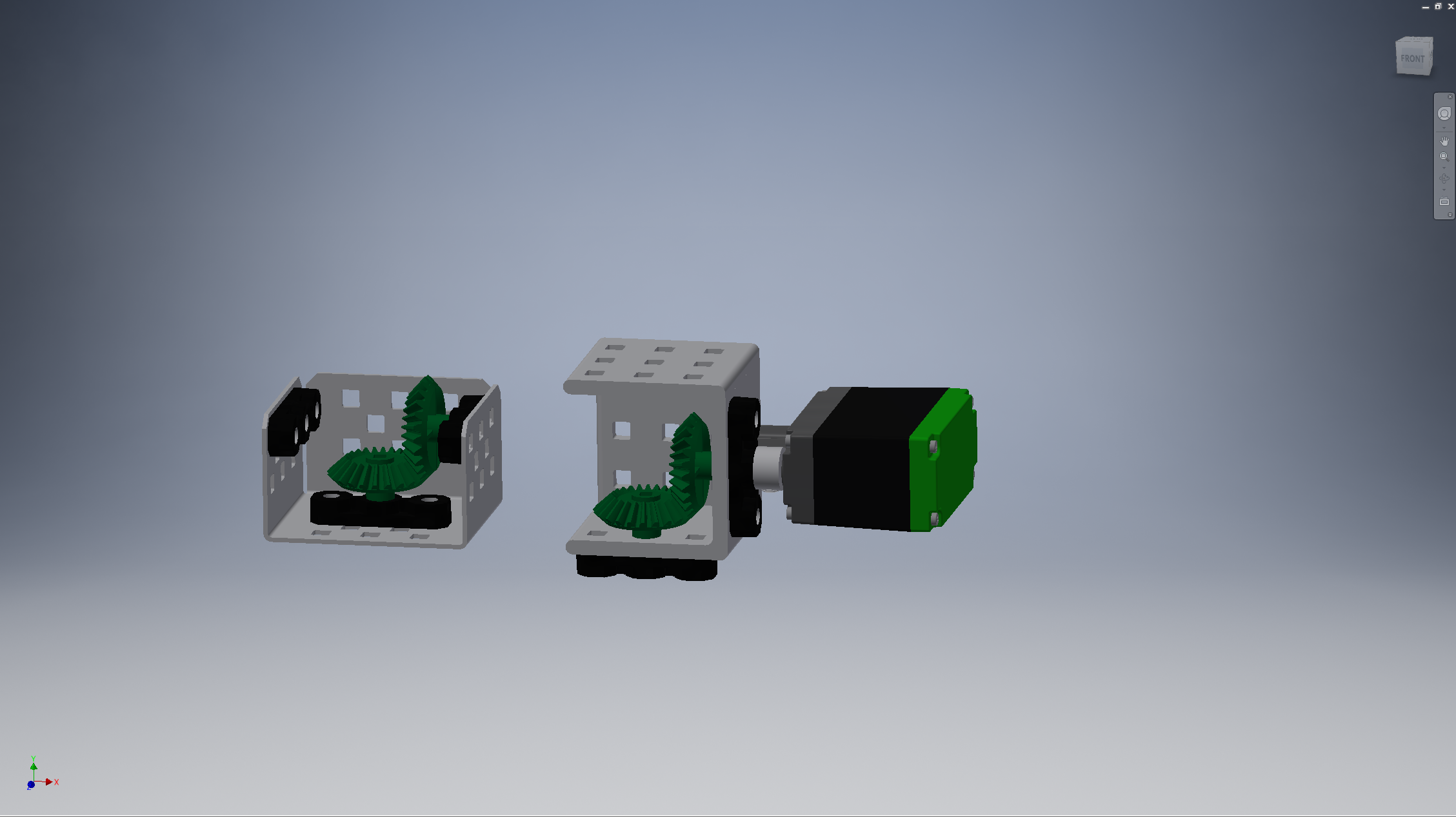

Bevel gears are a very powerful, but under-utilized mechanical component in the VEX Robotics. Our team has created a new bevel gear bracket so that we can increase the complexity and functionality of our robot. By re-modeling the bracket we can improve the current one by reducing weight and allowing the easier mounting of a motor. We are able to position the bracket in almost any direction due to the amount of holes on the bracket. We used Autodesk Inventor 2016 to develop this part.
