The VEX Clip-On Spacer

  1. Home
  2. 2019 Challenges
  3. Make It Real CAD Engineering Challenge Sponsored by Autodesk ®
  4. Entries
  5. The VEX Clip-On Spacer
0

vex99157
Entry ID #: 6247
Created: Mon, Jan 14, 2019 10:26 PM

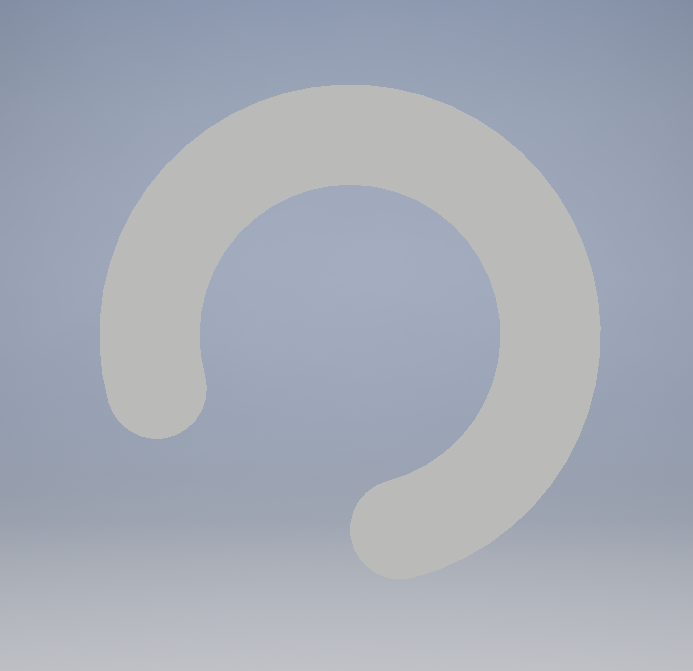

The VEX Clip-On Spacer is the solution to the struggle of spending hours attempting to fit a spacer in a tight corner. This simple, yet innovative spacer can be slipped on without removing the axle from the part. No more having your entire gear assembly fall off the axle while you are trying to fit on a sixteenth! Please look below to see more information in our final diagram, full report, and pictures.

Files

quarter_inch_stl (stl)

half_inch_ipt (ipt)

half_inch_stl (stl)

quarter_inch_ipt (ipt)

sixteenth_inch_ipt (ipt)

sixteenth_inch_stl (stl)

Clip-On Spacer Report (pdf)

Links / Videos

There is nothing here.
