Advanced Pulley Motion Kit

resolutionrobotics
Entry ID #: 6573
Created: Tue, Jan 15, 2019 11:28 AM

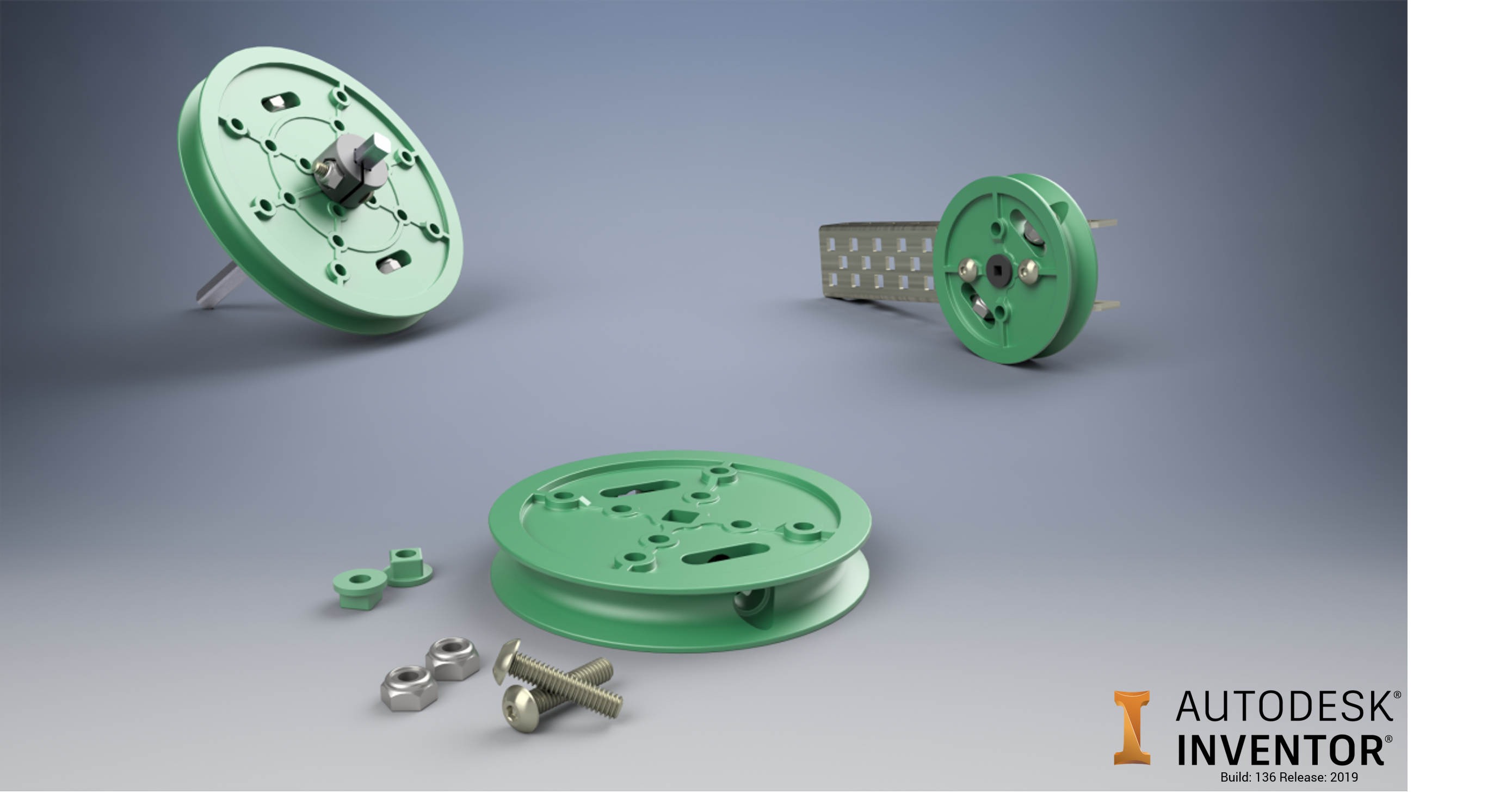

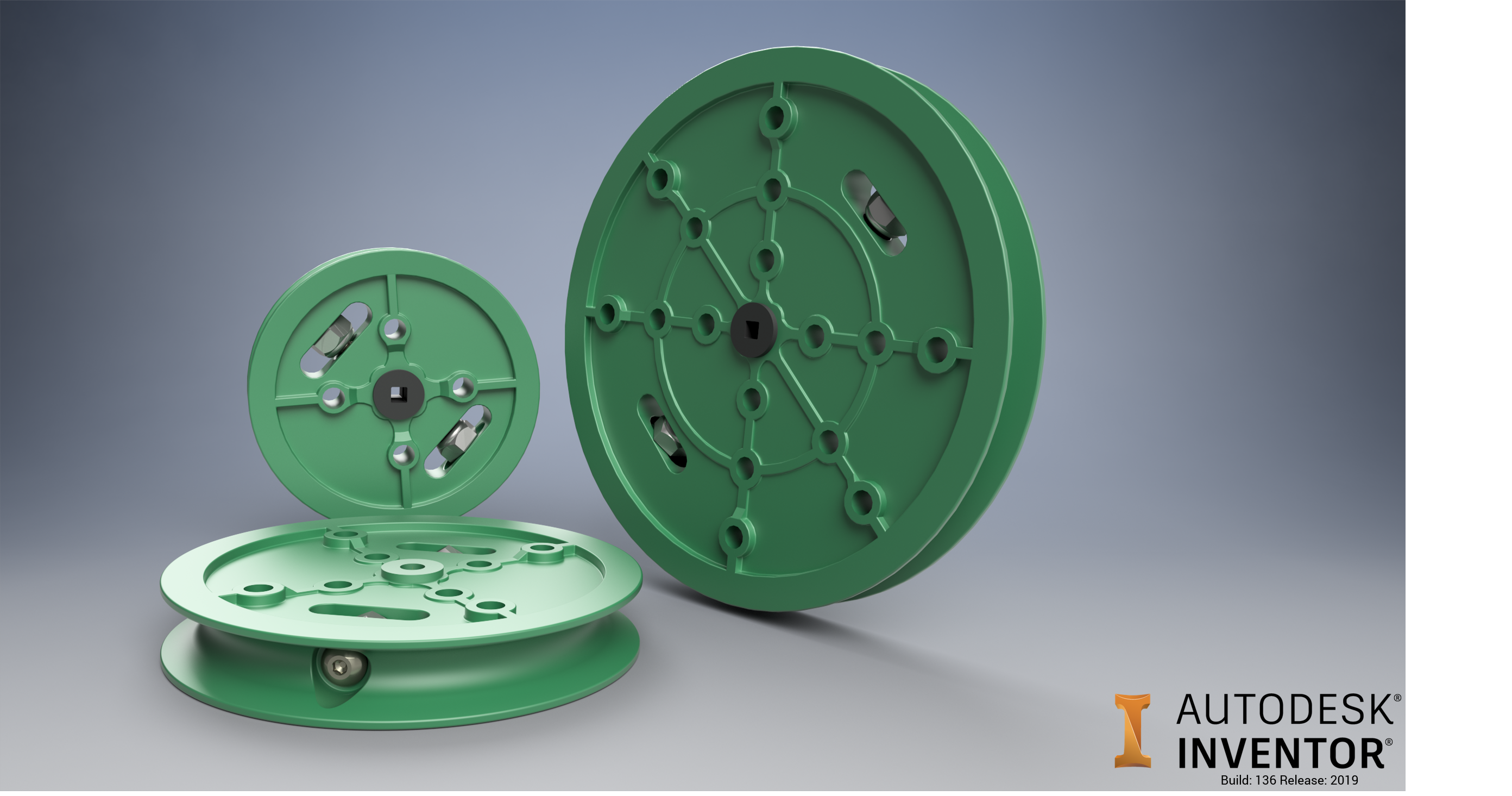

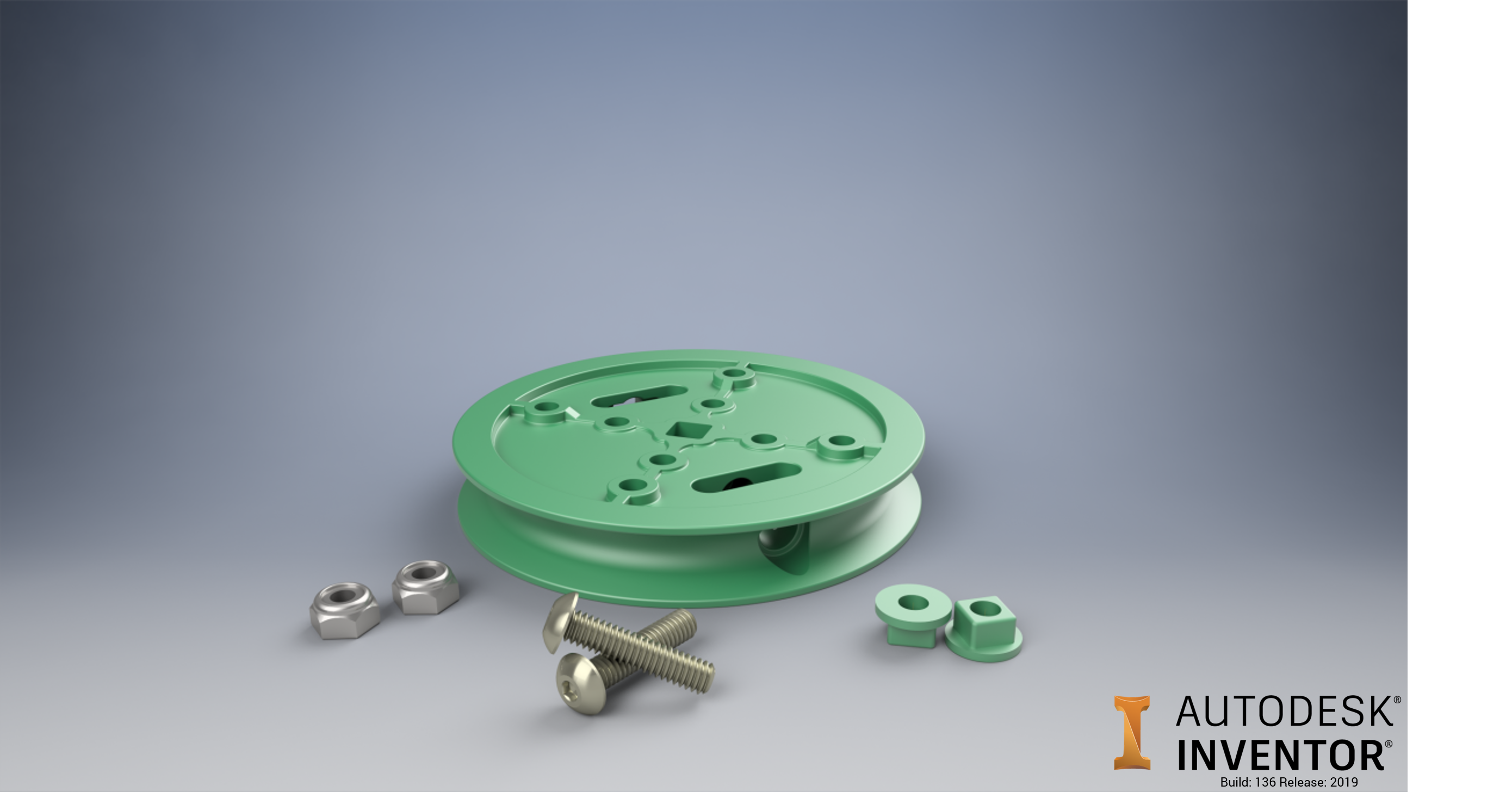

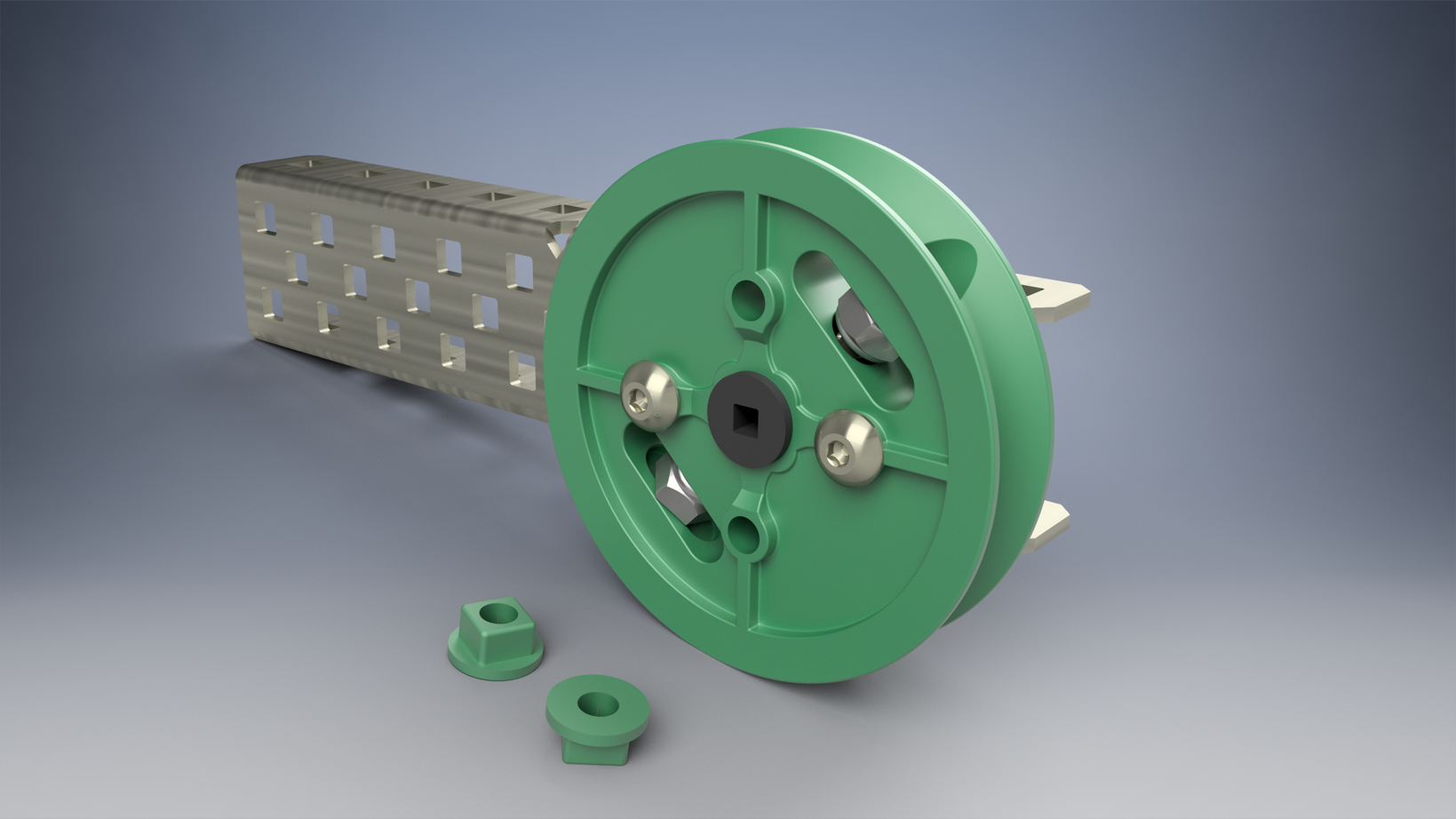

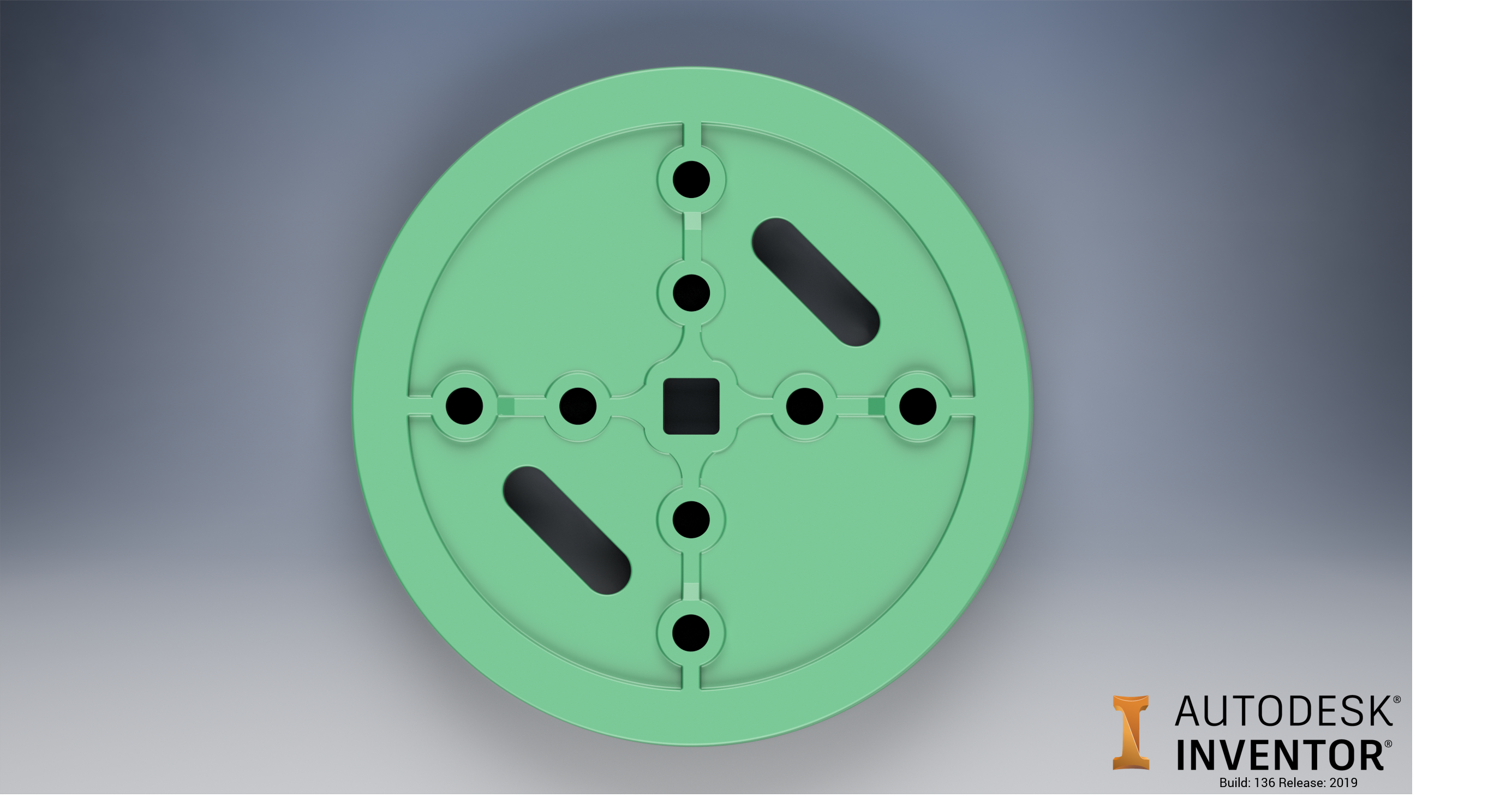

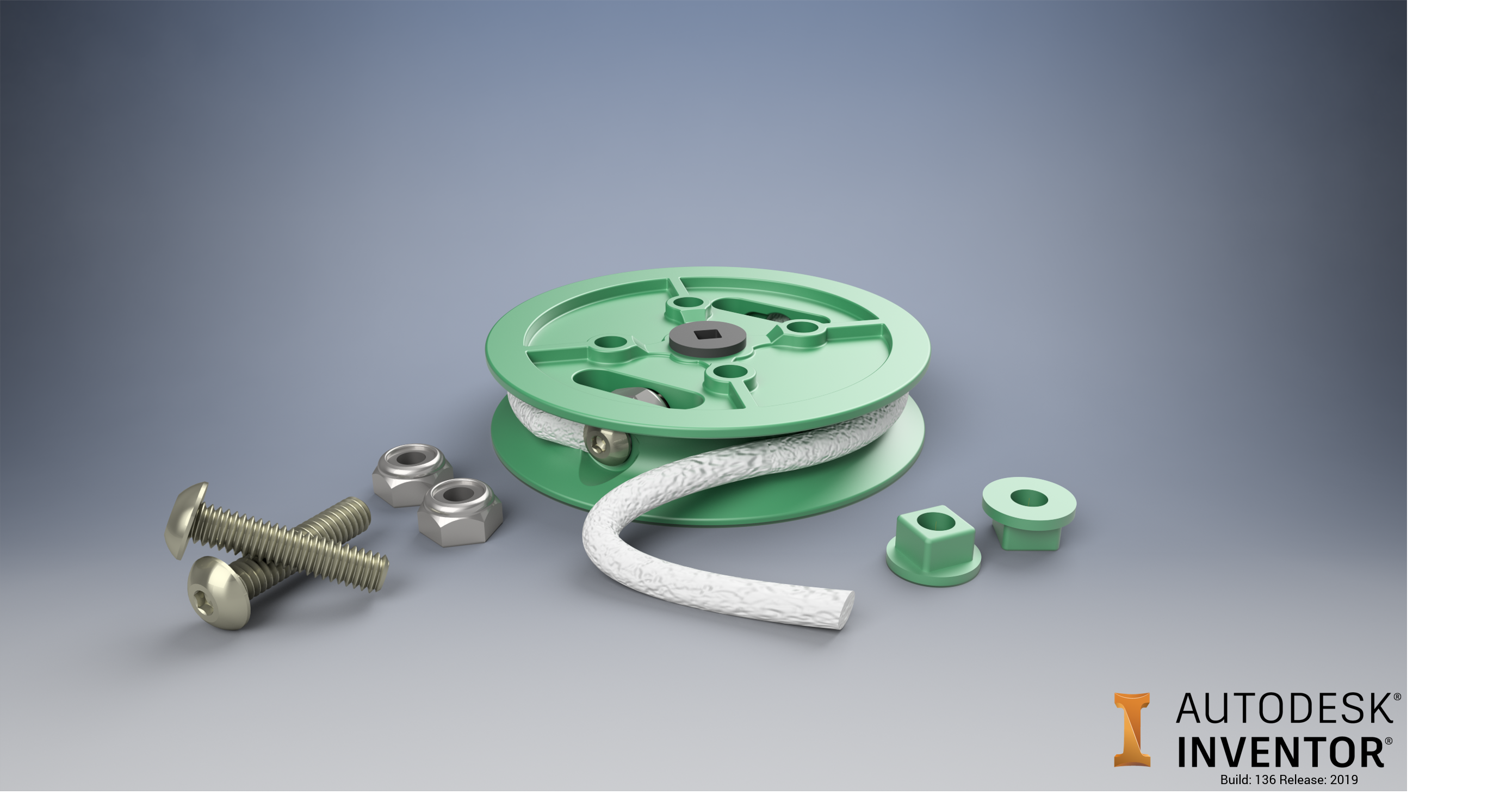

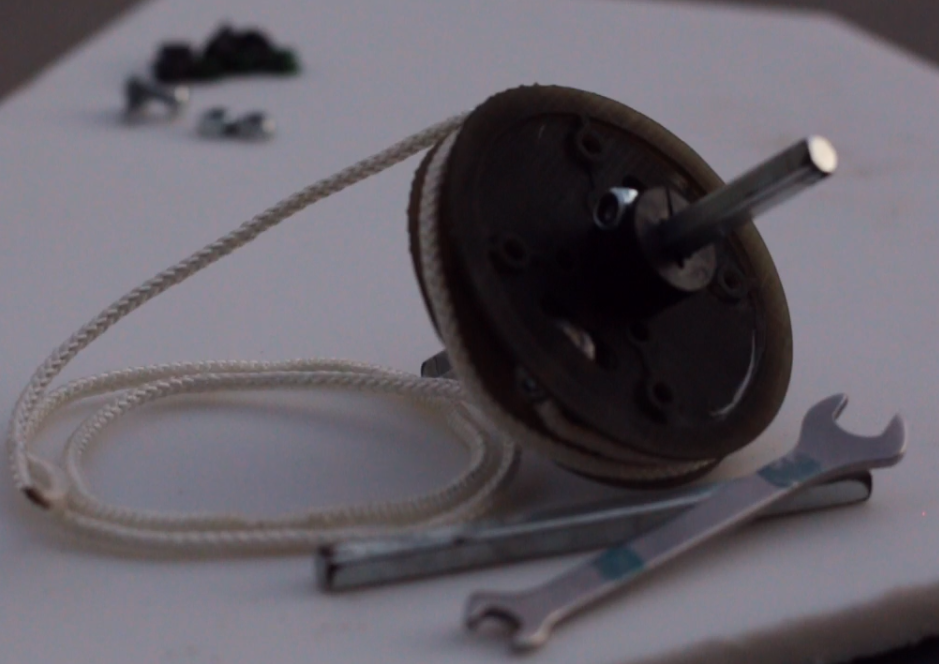

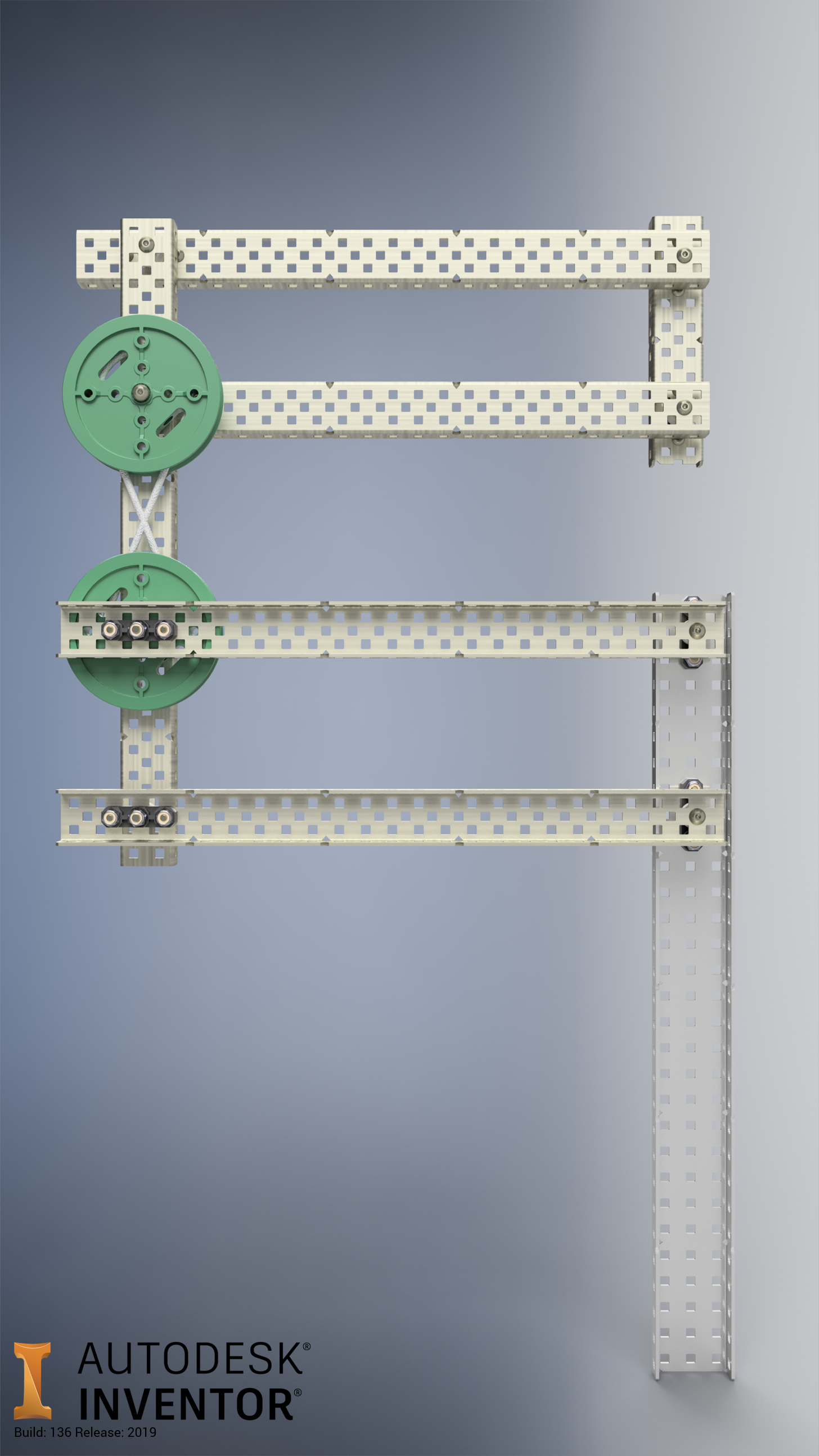

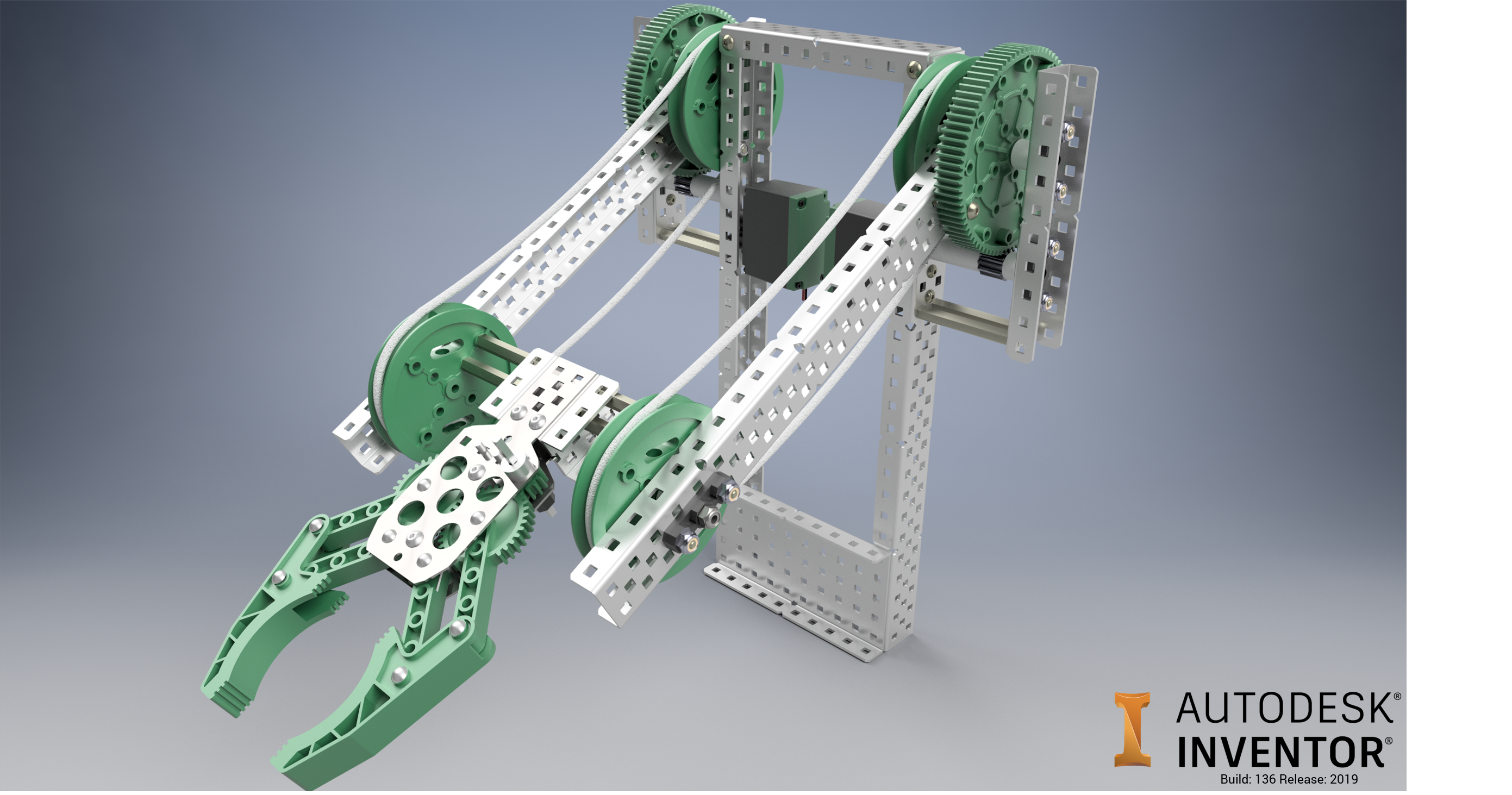

Introducing the Advanced Pulley Motion Kit (APMK) String is often an underused component in VEX robots. The APMK fixes this problem by introducing new ways to build VEX robots, and to make use of lightweight, low friction, low backlash string mechanisms. The APMK allows the creation of a very large variety of new mechanisms, as well as offering more efficient ways of creating existing ones. Software Used: Autodesk Inventor Professional 2019 (Build:136) Full PDF Report is attatched, alongside images, .ipt files, and .stl files intended for 3D printing.

Files

Advanced Pulley Motion Kit Report (pdf)

Large Pulley (ipt)

Medium Pulley (ipt)

Small Pulley (ipt)

Small Pulley - With String (ipt)

Small Pully - For 3D Print (stl)

Medium Pully - For 3D Print (stl)

Links / Videos

Advanced Pulley Motion Kit Product Video

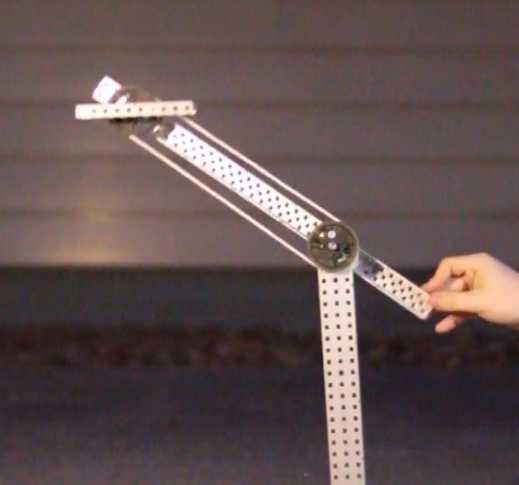

YouTube Video introducing and demonstrating the Advanced Pulley Motion Kit.
